Output Shaft: Disassembly
WARNING: This page is about a different variant/trim than selected.
-

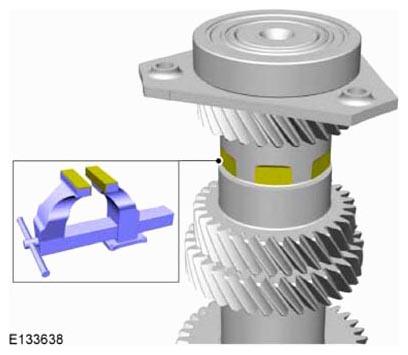

NOTE: Use vise jaw protectors.
General Equipment : Vise
General Equipment : Vise Jaw Protectors
-

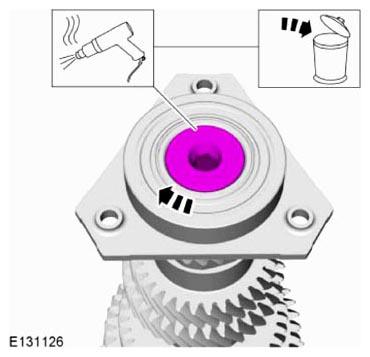

NOTE: The component has a left-hand thread.
General Equipment : Hot Air Gun
- Special Tool(s)

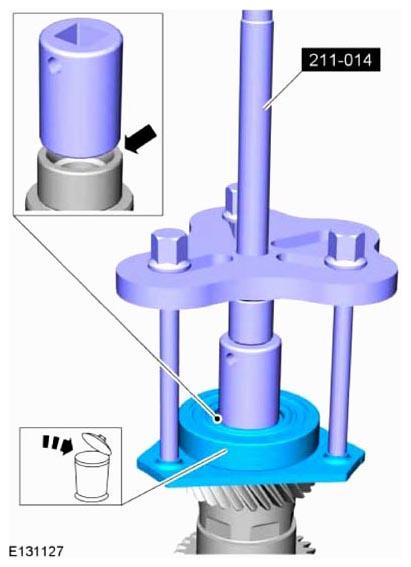

: 211-014 Remover, Steering Wheel
-

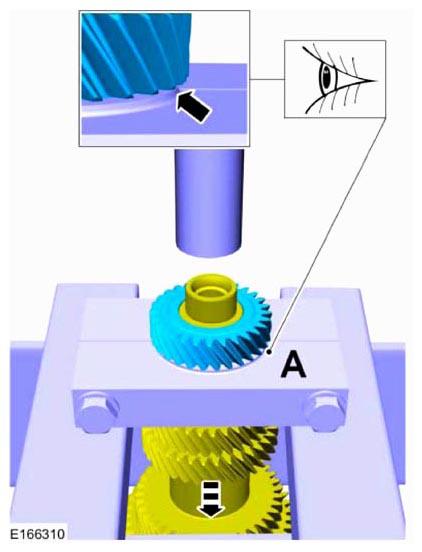

NOTE: Only tighten the bolts finger tight at this stage.

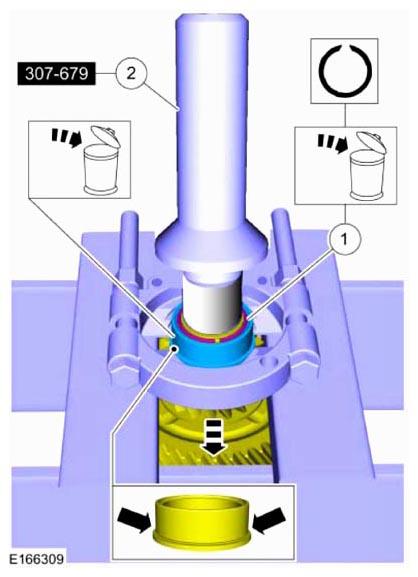

Special Tool(s) : 205-D015 (D80L-630-4) Step Plate

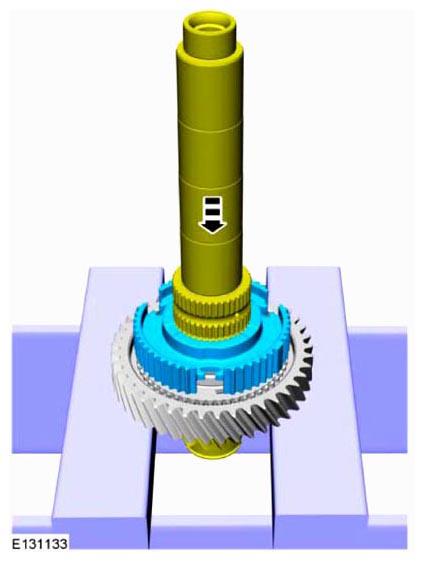

General Equipment : Hydraulic Press
General Equipment : Bearing Separator
-

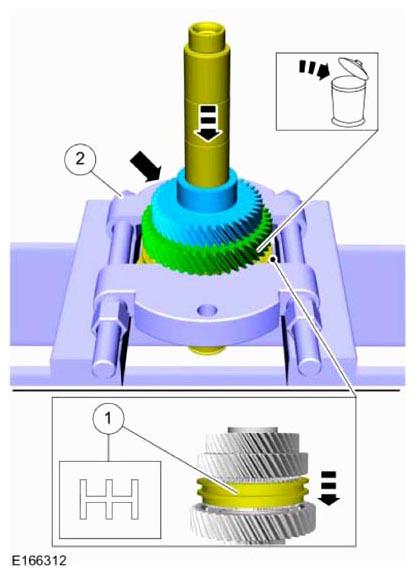

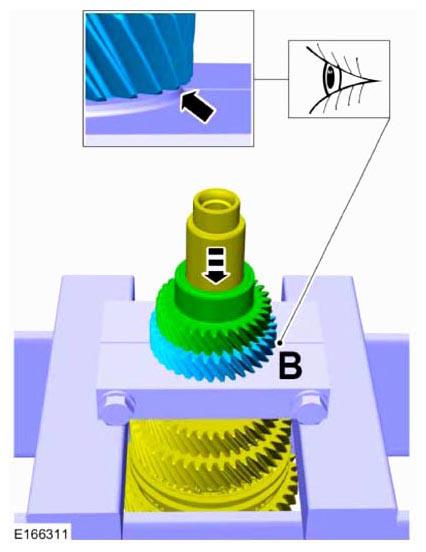

NOTE: Only tighten the bolts finger tight at this stage.
General Equipment : Bearing Separator
General Equipment : Hydraulic Press
-

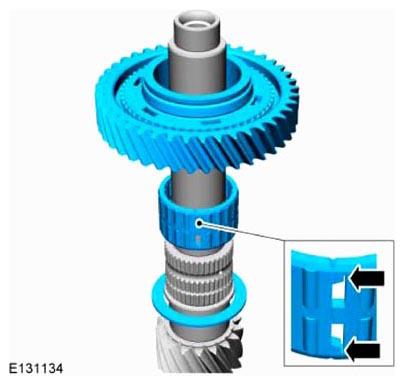

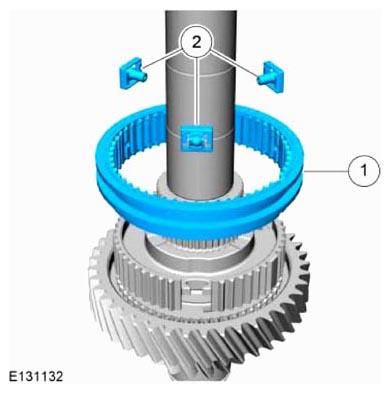

NOTE: Note the position of the components before removal.
- General Equipment
: Hydraulic Press
