Front Brake Disc: Removal

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.

NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

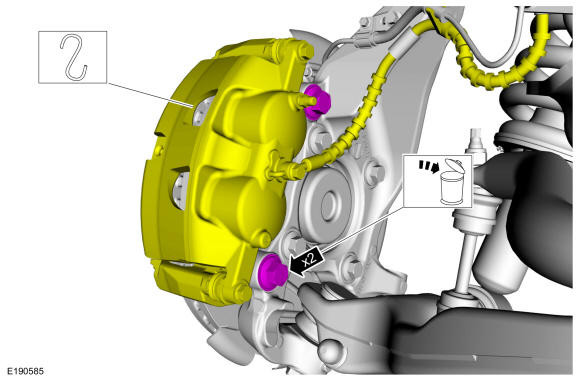

Remove the 2 anchor plate bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.

Torque: 184 lb.ft (250 Nm)

Courtesy of FORD MOTOR COMPANY

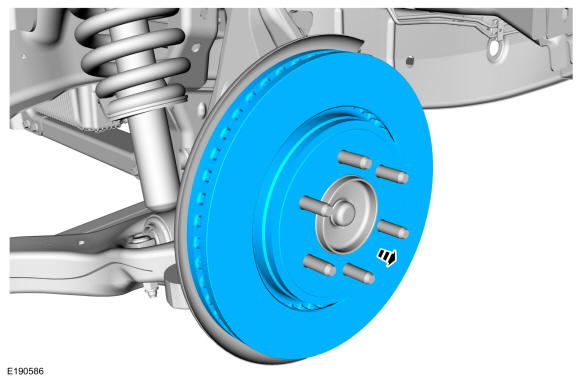

Remove the brake disc.

Courtesy of FORD MOTOR COMPANY
