Gearshift Cable Adjustment: Activation

WARNING: This page is about a different variant/trim than selected.
WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .
  2. Apply the parking brake.

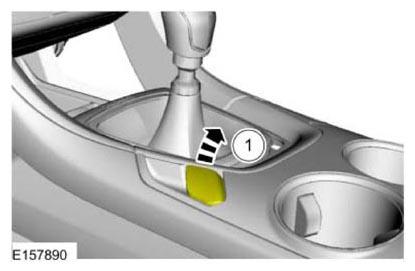

    G08636898

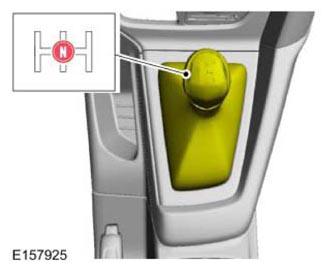

  3. G08636899
  4. Refer to: AIR CLEANER OUTLET PIPE .

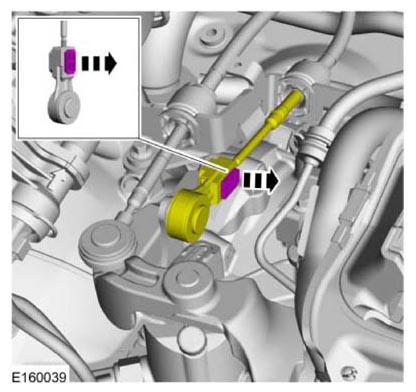

  5. G08636900
  6. NOTE: Move the select lever back and forth to verify free motion.

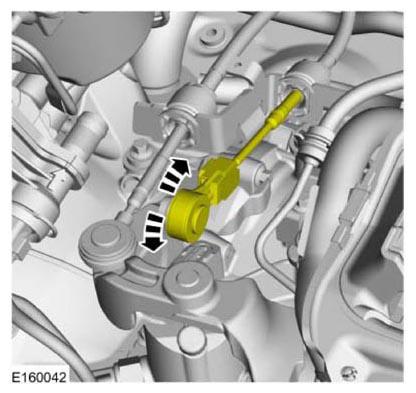

    G08636901
  7. NOTE: By placing the gearshift lever into the 4th gear position, it locks the small lever into the N  position.
    G08064960
  8. G08636903
  9. Refer to: AIR CLEANER OUTLET PIPE .
    1. Release the parking brake.

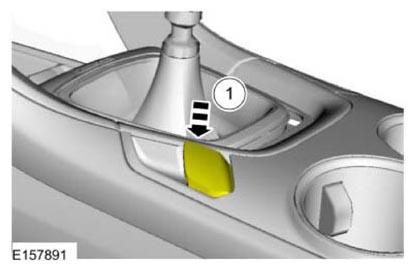

      G08636904
