Repair procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery.
(Refer to "BATTERY ")
Disconnet the vehicle speed sensor (A).

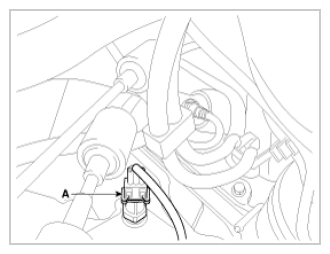

Fig 1: Identifying Vehicle Speed Sensor
Courtesy of HYUNDAI MOTOR AMERICA
Remove the vehicle speed sensor (A).
Tightening torque:

5.9 ~ 7.8 N.m (0.6 ~ 0.8 kgf.m, 4.3 ~ 5.8 lb-ft)

Fig 2: Identifying Vehicle Speed Sensor And Screw
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- After removing speed sensor, be careful not to enter dust, foreign matters, etc in speed sensor hole.
- Check the wear of spline (A).
- When installing, do not reuse the O-ring (B).
Fig 3: Identifying Spline And O-Ring
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
