Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items;
1. Engine cover
  (Refer to "ENGINE COVER ")
2. Air cleaner assembly and air duct
  (Refer to "AIR CLEANER ")
3. Battery and battery tray
  (Refer to "BATTERY ")
Disconnect the back up lamp switch connector (A).

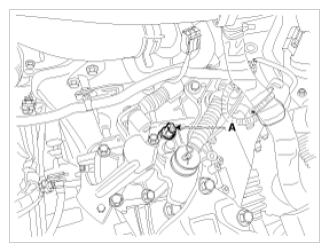

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the back up lamp switch (A).

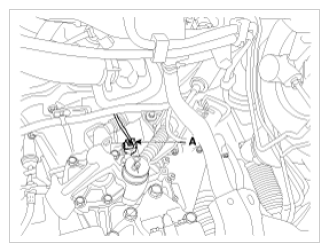

Fig 2: Identifying Back Up Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA
Replace a new one and install the back up lamp switch.
Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
