UEGO Monitor

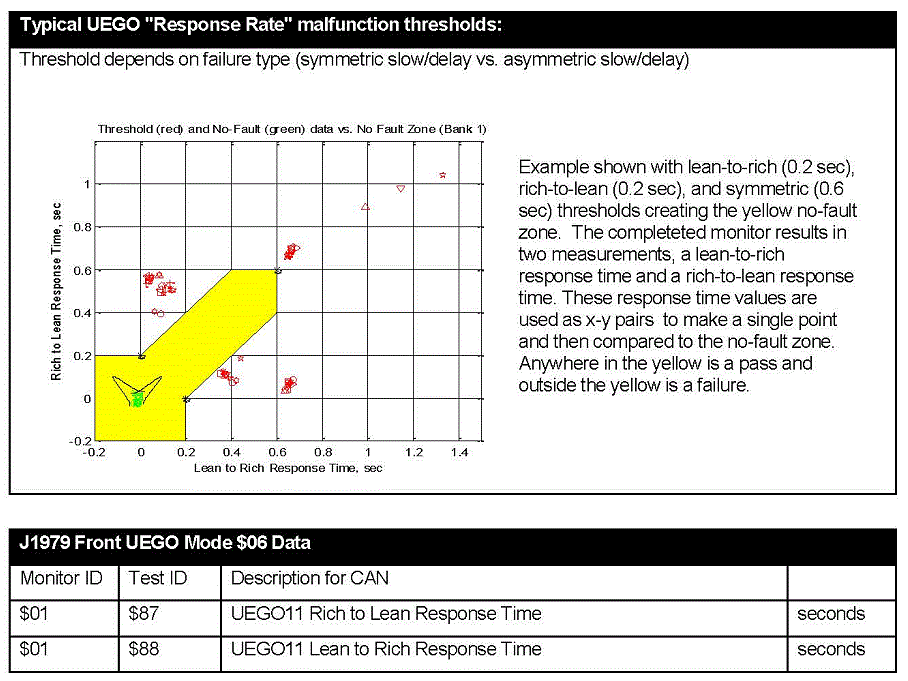

Fig 1: Mode $06 Data For UEGO Response Rate Monitor

G00527498

Courtesy of FORD MOTOR CO.
