Mode 6
>>
Mode 6 - Hybrid Electric Vehicles
>>
Misfire Monitor
Misfire Monitor

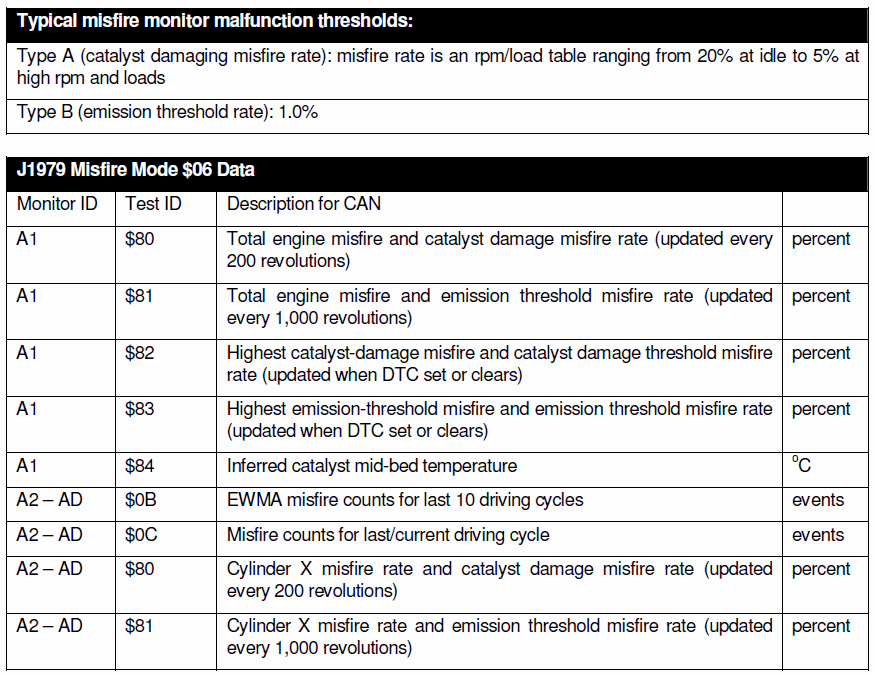

Fig 1: Mode $06 Data For Misfire Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
