Clutch System Bleeding

SPECIAL TOOL(S) / GENERAL EQUIPMENT

Brake/Clutch System Pressure Bleeder/Filler

MATERIALS SPECIFICATIONS

Name	Specification
Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid PM-20	WSS-M6C65-A2 ISO 4925 Class 6

Refer to: Health and Safety Precautions ( SERVICE INFORMATION General Information, Description and Operation).
Refer to: Brake System Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
NOTE: Make sure that the brake fluid level does not drop below the MIN mark.

Fig 1: Inspecting Minimum Mark Of Brake Fluid Level
Courtesy of FORD MOTOR CO.
If equipped.

Fig 2: Locating Brake/Clutch System Pressure Bleeder/Filler Cap
Courtesy of FORD MOTOR CO.
Install the following items:
- General Equipment : Brake/Clutch System Pressure Bleeder/Filler
Fig 3: Locating Brake/Clutch System Pressure Bleeder/Filler Hose
Courtesy of FORD MOTOR CO.
1. If equipped.
2. Refer to: Specifications ( SPECIFICATIONS ).
  General Equipment : Brake/Clutch System Pressure Bleeder/Filler

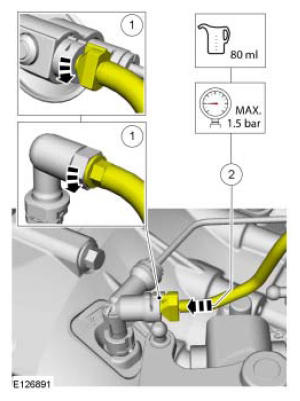

Fig 4: Checking Brake/Clutch System Maximum Oil Pressure And Level
Courtesy of FORD MOTOR CO.
1. If equipped.
Fig 5: Tightening Brake/Clutch System Pressure Bleeder/Filler Hose Connectors
Courtesy of FORD MOTOR CO.
Remove the following items:
- General Equipment : Brake/Clutch System Pressure Bleeder/Filler
Fig 6: Locating Brake/Clutch System Pressure Bleeder/Filler Hose
Courtesy of FORD MOTOR CO.
If equipped.

Fig 7: Locating Brake/Clutch System Pressure Bleeder/Filler Cap
Courtesy of FORD MOTOR CO.
In order to remove any small amounts of trapped air remaining in the system, operate the clutch pedal 5 times, using the full clutch pedal travel.

Fig 8: Locating Clutch Pedal
Courtesy of FORD MOTOR CO.

NOTE: Make sure that fluid level is to the MAX mark.

Fig 9: Inspecting Maximum Fluid Level

Courtesy of FORD MOTOR CO.

Material : Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2) (ISO 4925 Class 6)
Start the engine.
Check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.

Fig 10: Identifying Reverse Gear Position
Courtesy of FORD MOTOR CO.
After waiting approx. 30 sec., check the operation of the clutch again. If reverse gear engagement is still excessively noisy, repeat the bleeding procedure.
