Ignition Coil-On-Plug: Removal

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
1. Torque : 5 Nm
2. Torque : 5 Nm

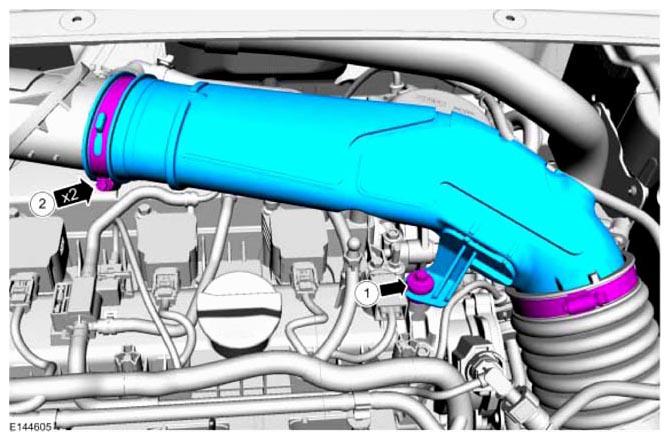

Fig 1: Locating Ignition Coil-On-Plug Hose Clamps
Courtesy of FORD MOTOR CO.

NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

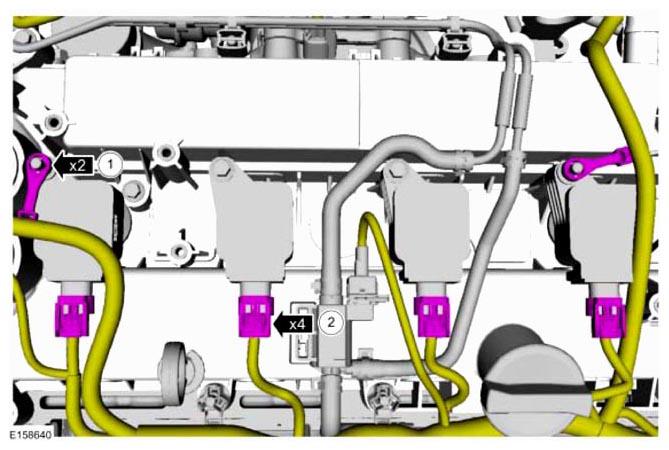

Fig 2: Locating Ignition Coil-On-Plug Electrical Connector And Ground Wire Bolt

Courtesy of FORD MOTOR CO.

Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

NOTE: When installing, apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.
1. Torque : 8 Nm
2. Material : Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

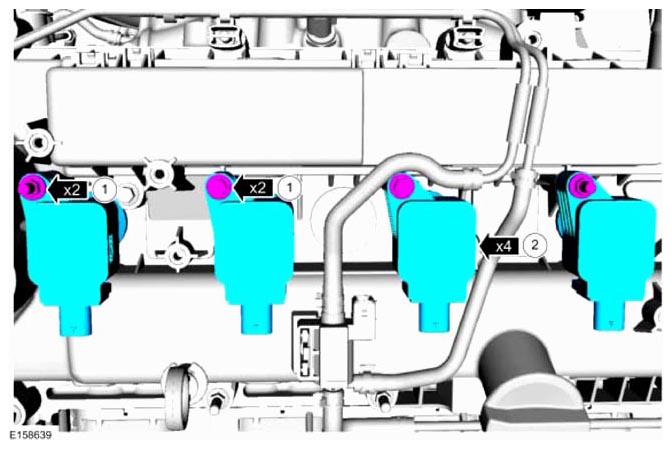

Fig 3: Locating Ignition Coil-On-Plug Bolts And Nuts
Courtesy of FORD MOTOR CO.
Inspect the ignition coil-on-plug rubber boot for cracks, rips, or tears. Replace any damaged coil-on-plug rubber boots.

Fig 4: Inspecting Ignition Coil-On-Plug Rubber Boot For Cracks, Rips Or Tears
Courtesy of FORD MOTOR CO.
