Fuel Pump Driver Module (FPDM): Removal

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Vehicles with rear bench seat

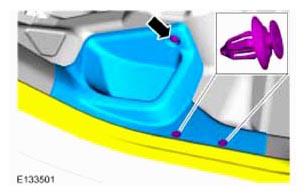

Fig 1: Removing RH Front Seat Of Forward
Courtesy of FORD MOTOR CO.

Vehicles with split rear seat backrest
Position the RH front seat all of the way forward.
Raise the RH rear seat cushion and fold forward.

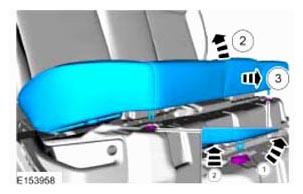

Fig 2: Locating Rear Seat Backrest Mounting Screw
Courtesy of FORD MOTOR CO.
Remove the RH Outboard safety belt lower anchor bolt.
Torque : 40 Nm

Fig 3: Locating RH Outboard Safety Belt Lower Anchor Bolt
Courtesy of FORD MOTOR CO.

All vehicles
NOTE: The FPDM is held in place with an adhesive backing.

Fig 4: Locating FPDM Wiring Harness Connector
Courtesy of FORD MOTOR CO.
