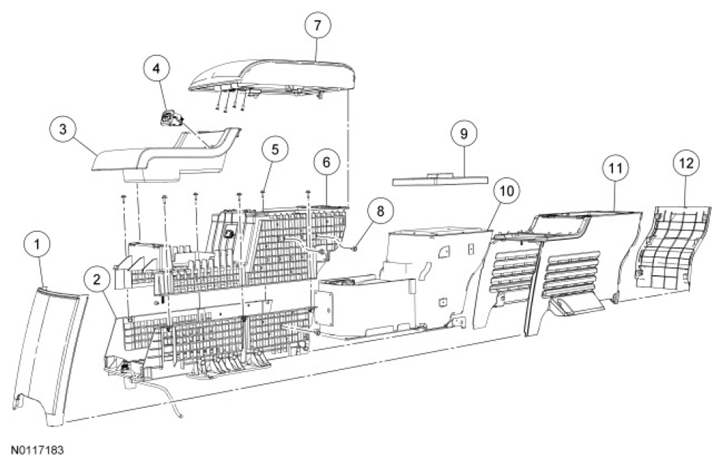

Rear console
| Item | Part Number | Description |
|---|---|---|
| 1 | 04567 | Front finish panel |
| 2 | 045A90B | Bottom panel |
| 3 | 13562B | Top trim panel |
| 4 | 14D468 | Refrigerator switch assembly |
| 5 | W505153 | Panel screws (6 required) |
| 6 | 045A90A | Top panel |
| 7 | 06024 | Rear armrest |
| 8 | W505153 | Refrigerator screws (6 required) |
| 9 | 044672 | Refrigerator lid |
| 10 | 045A36 | Refrigerator |
| 11 | 045C22 | Side finish panel |
| 12 | 045E24 | Rear finish panel |
