Engine Harness

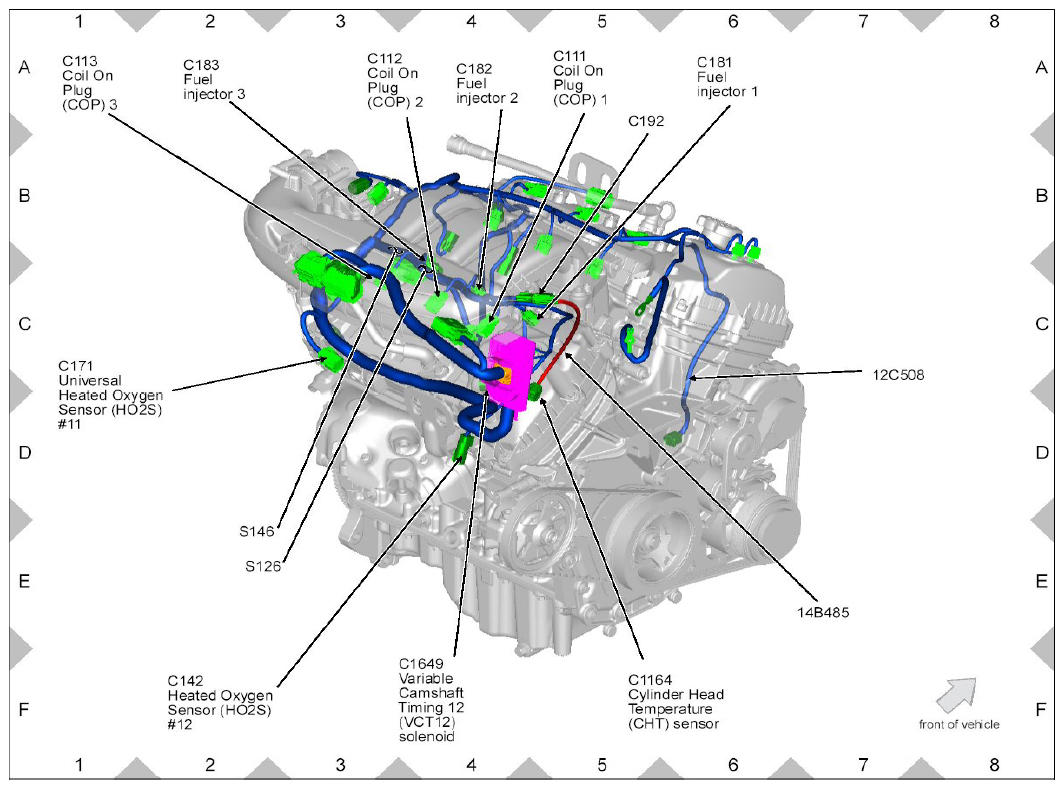

Fig 1: Engine Harness - Component Location Views (1 Of 4)
G08669940Courtesy of FORD MOTOR CO.

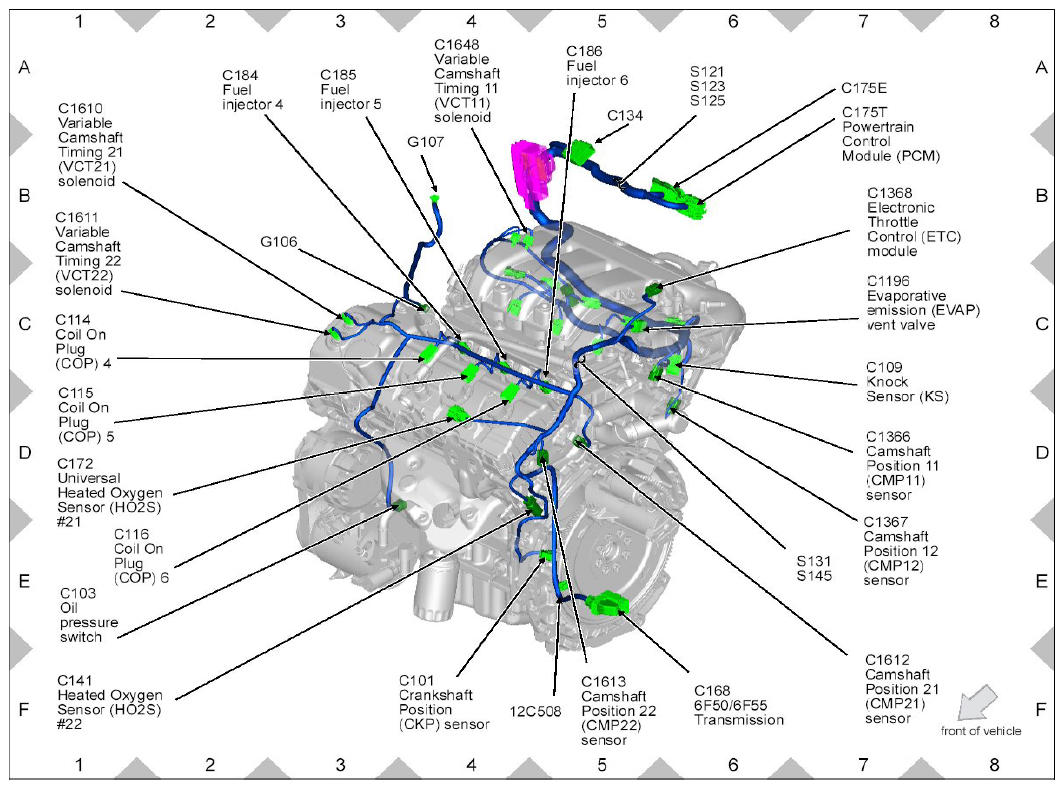

Fig 2: Engine Harness - Component Location Views (2 Of 4)
G08669941Courtesy of FORD MOTOR CO.

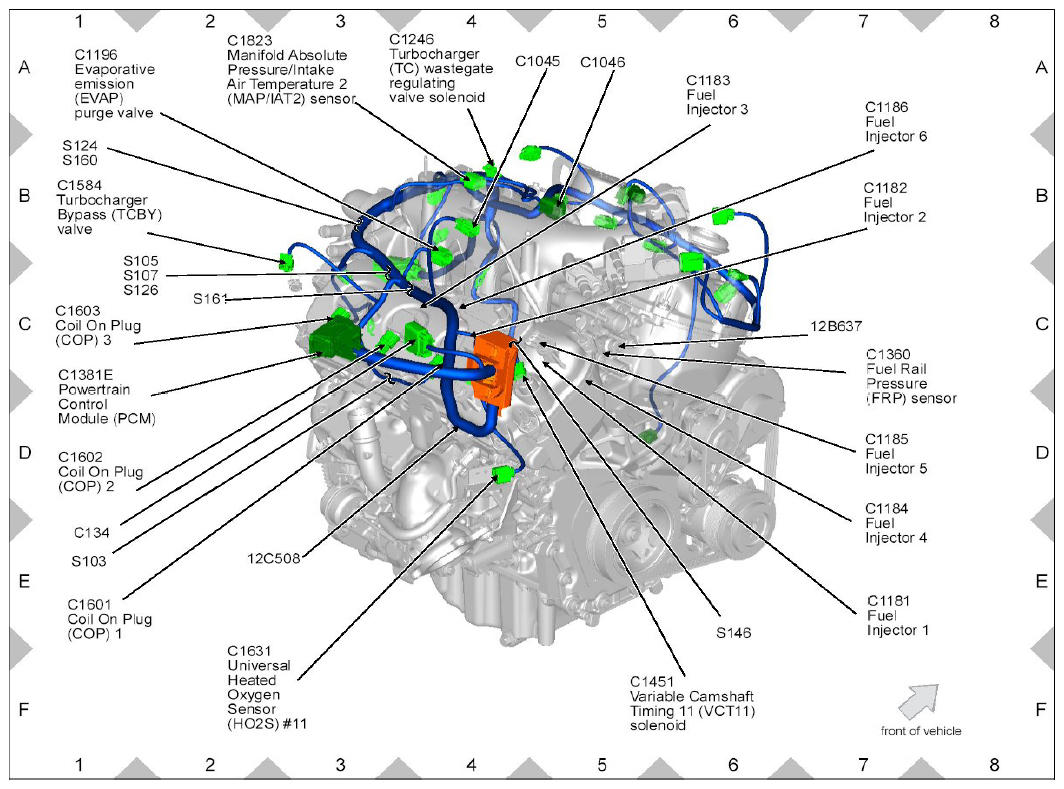

Fig 3: Engine Harness - Component Location Views (3 Of 4)
G08669942Courtesy of FORD MOTOR CO.

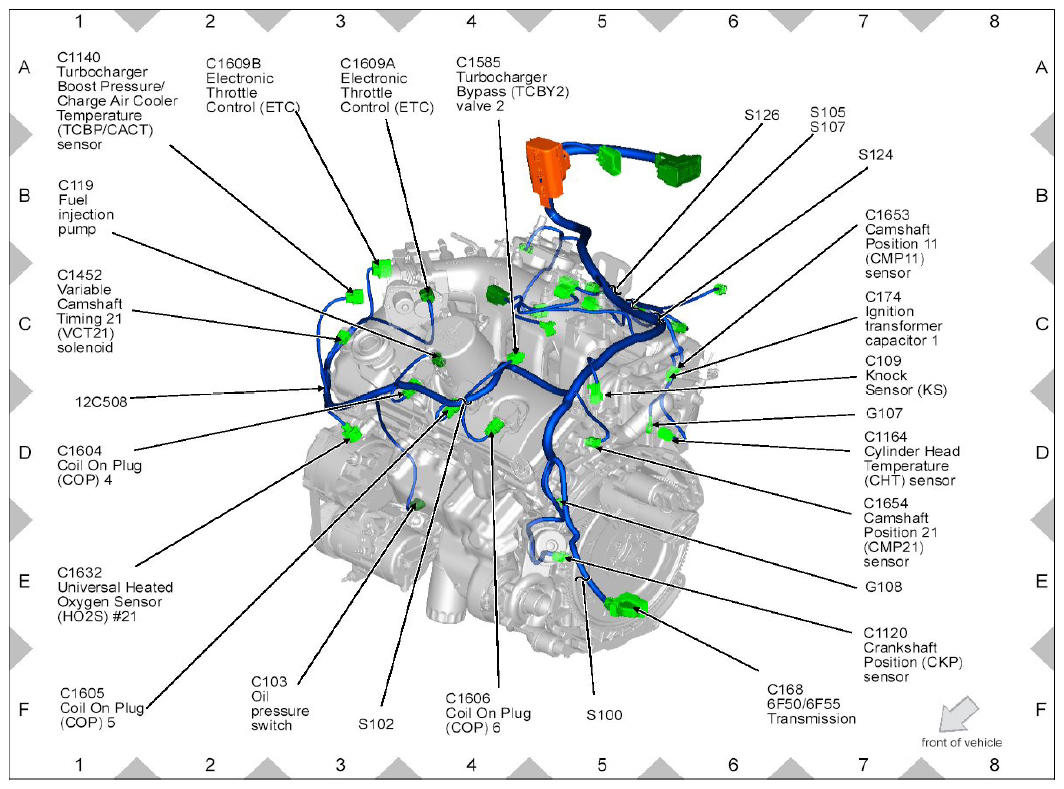

Fig 4: Engine Harness - Component Location Views (4 Of 4)
G08669943Courtesy of FORD MOTOR CO.
