Engine Compartment Harness

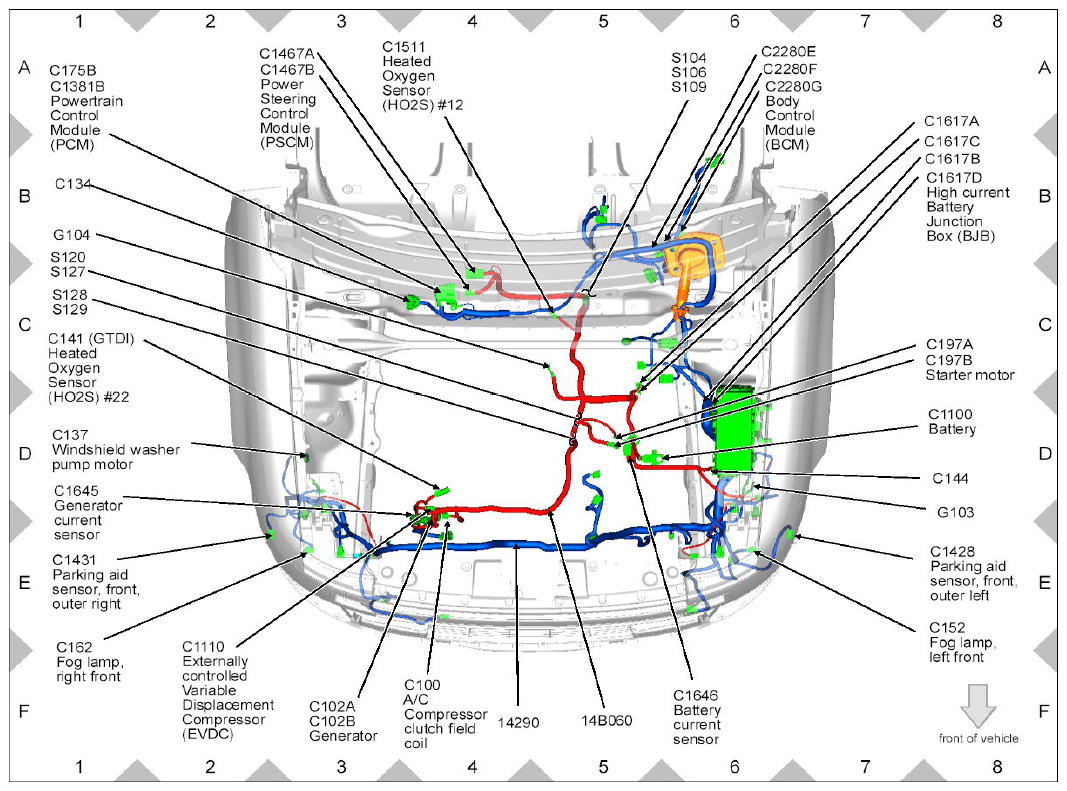

Fig 1: Engine Compartment Harness - Component Location Views (1 Of 3)
G08669937Courtesy of FORD MOTOR CO.

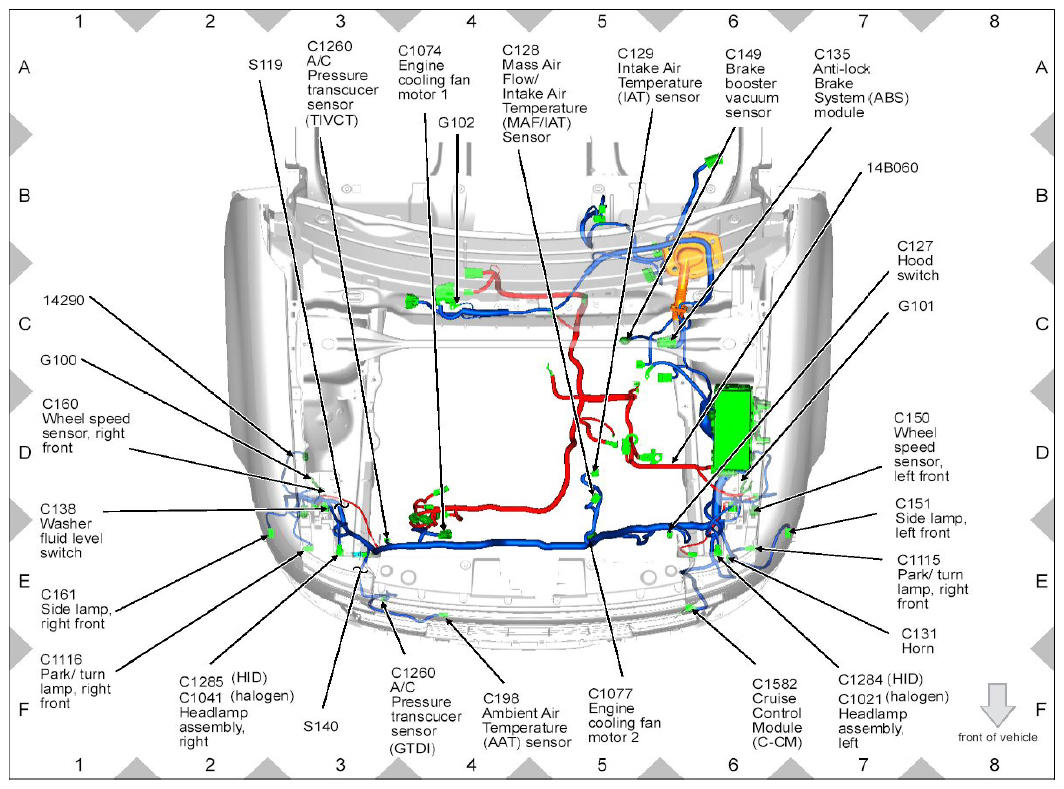

Fig 2: Engine Compartment Harness - Component Location Views (2 Of 3)
G08669938Courtesy of FORD MOTOR CO.

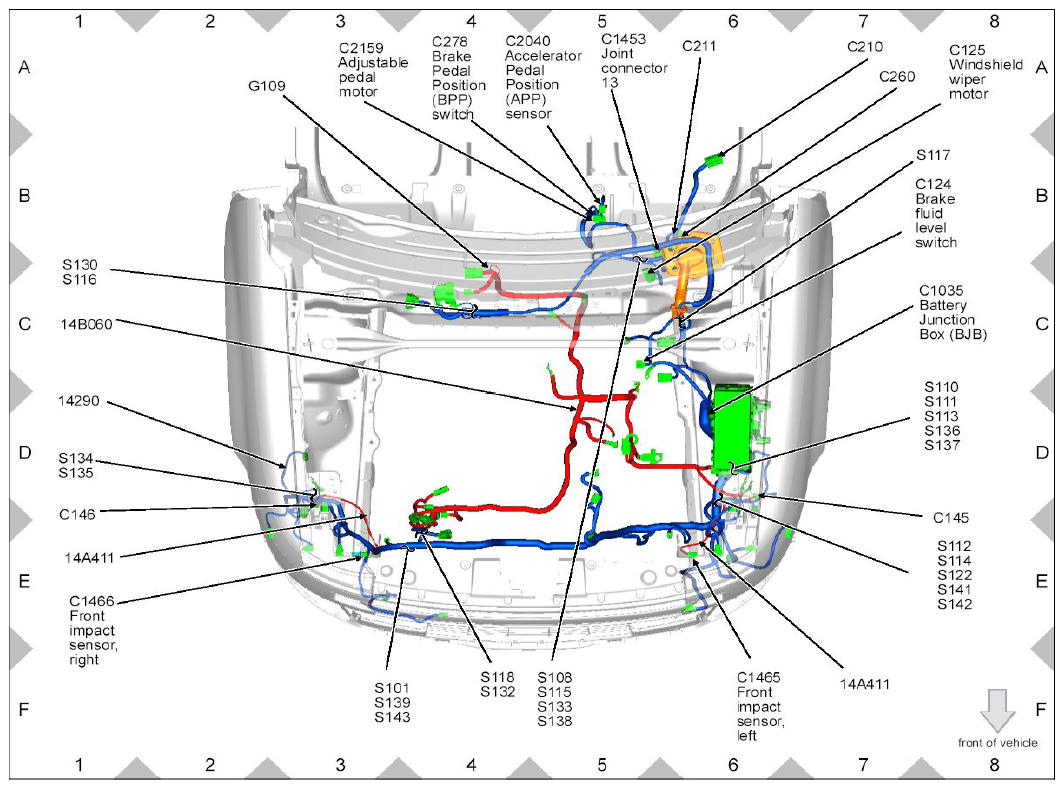

Fig 3: Engine Compartment Harness - Component Location Views (3 Of 3)
G08669939Courtesy of FORD MOTOR CO.
