Center Console Harness
Center Console Harness

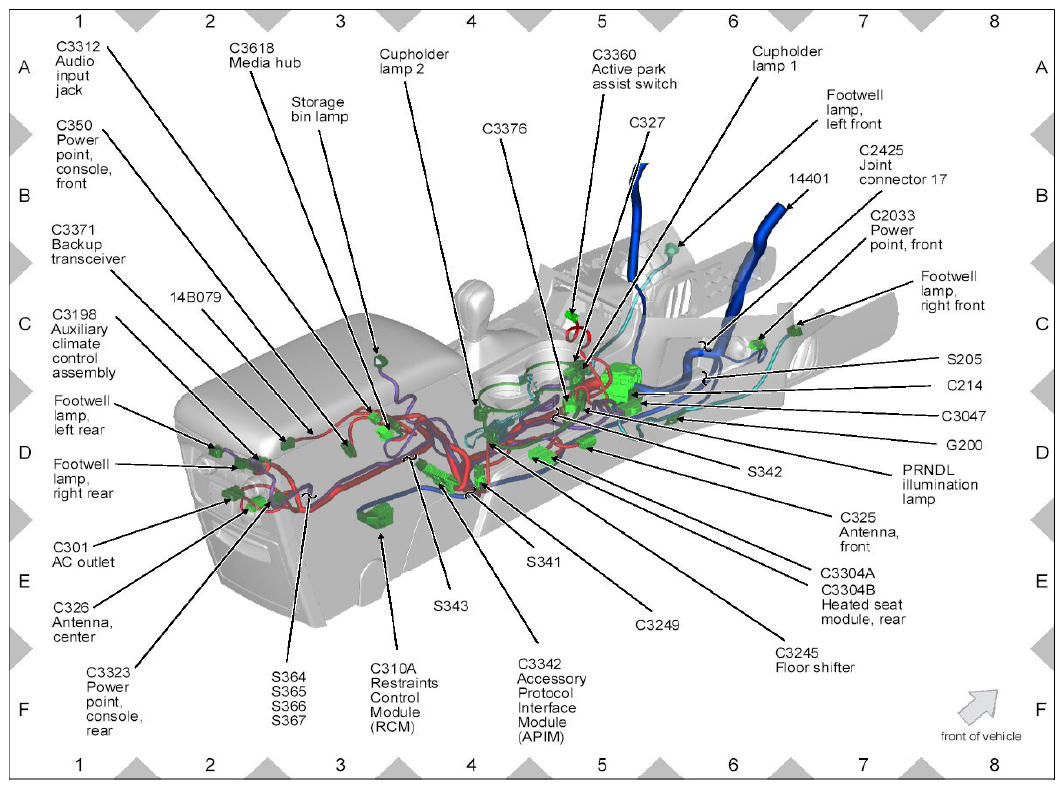

Fig 1: Center Console Harness - Component Location Views
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
