OEM Ground Distribution: Grounds: G201

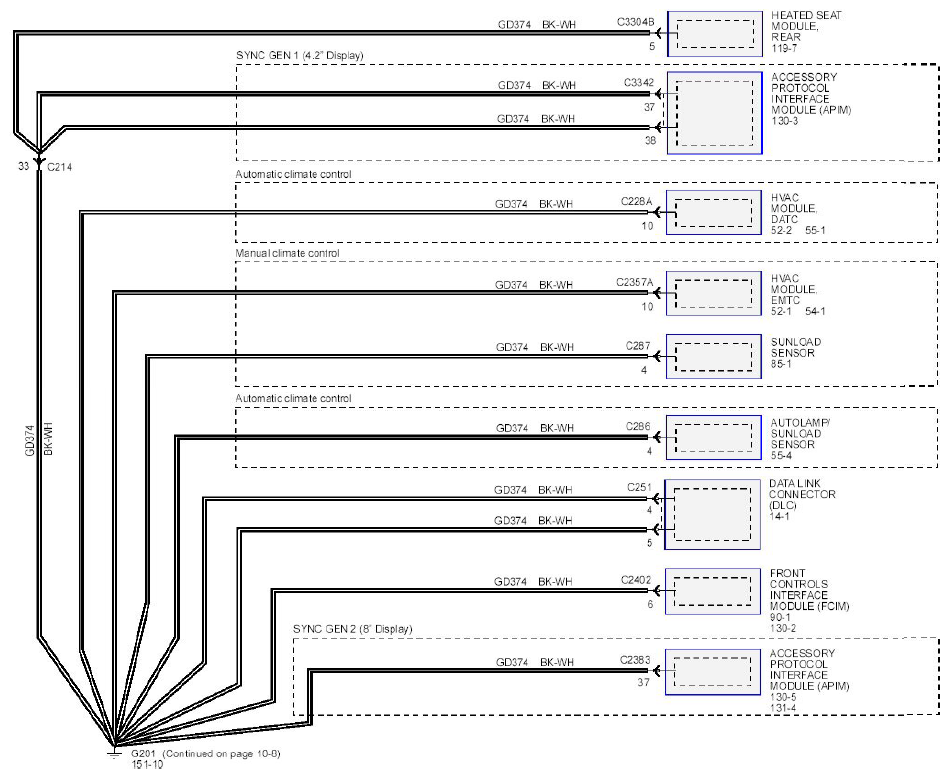

Fig 1: G201 Ground Diagram (1 Of 2)

G08669653

Courtesy of FORD MOTOR CO.

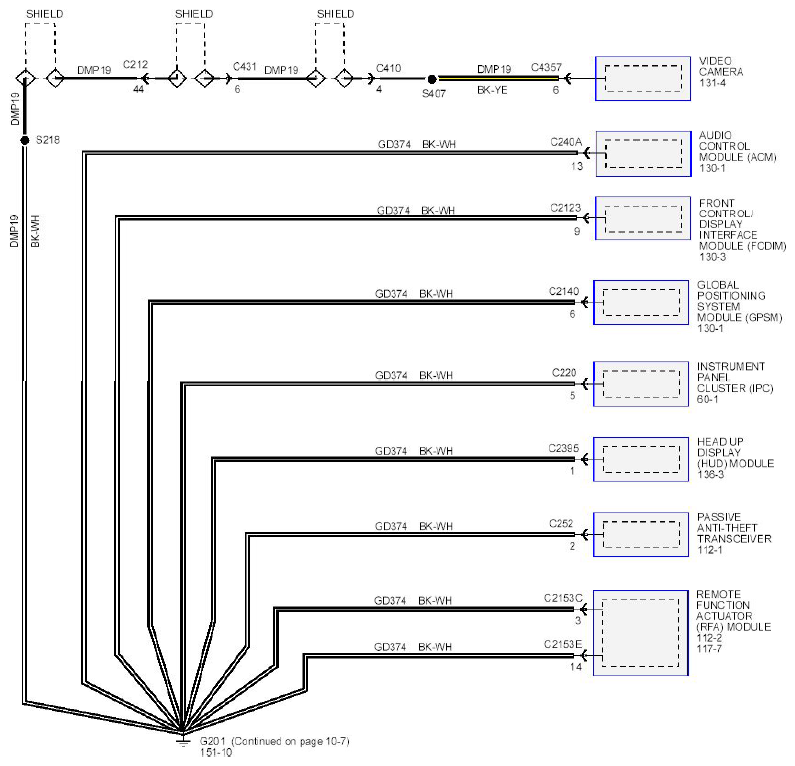

Fig 2: G201 Ground Diagram (2 Of 2)

G08669654

Courtesy of FORD MOTOR CO.
