Exploded View: Assembly

  1. NOTE: Do not torque the 4 ring gear bolts.

    Hand-start 4 new ring gear bolts to align the holes in the ring gear and the differential case. Evenly tighten the 4 bolts to seat the ring gear onto the differential case.

    G08627528
  2. Install the remaining 12 new differential ring gear bolts and tighten in 2 stages.
    • Stage 1: Tighten to 33 Nm (24 lb-in).
    • Stage 2: Tighten an additional 60 degrees.
      G08627529

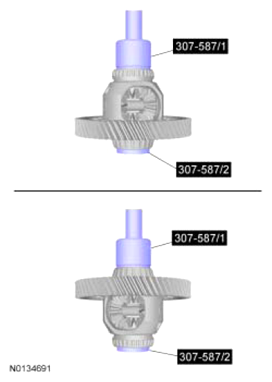

  3. Special Tool(s): Differential Bearing Installer and Guide 307-587 (307-587/1 and 307-587/2)

    General Equipment: Shop Press

    G08413009
  4. Select a new differential shim. Refer to TORQUE CONVERTER HOUSING .
