Selector Plate: Disassembly

  1. Remove the 2 selector plate bolts.

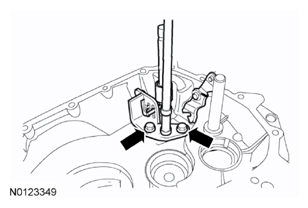

    Fig 1: Locating Selector Plate Mounting Bolts
    G08867475Courtesy of FORD MOTOR CO.
  2. Remove the selector mechanism.
    1. Fifth and reverse gear selector rod.
    2. Selector shift shaft.
    3. Reverse gear selector lever.
    4. Fifth and reverse gear selector rod guide sleeve.
    5. Selector plate.
      Fig 2: Identifying Fifth And Reverse Gear Selector Rod, Guide Sleeve, Selector Shift Shaft, Lever And Plate
      G08867476Courtesy of FORD MOTOR CO.
