Input Shaft: Disassembly

  1. Using the special tools, remove and discard the bearing.
    Fig 1: Removing Bearing Using Special Tools
    G08867450Courtesy of FORD MOTOR CO.

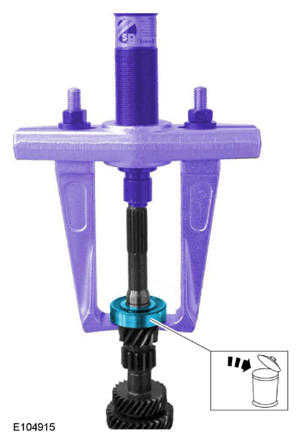

  2. Using a suitable tool, remove and discard the bearing.
    Fig 2: Removing Bearing Using Tool
    G08867451Courtesy of FORD MOTOR CO.
