Clutch Housing: Disassembly

Break the lube feed tubes off the clutch housing output shaft bearings and discard.

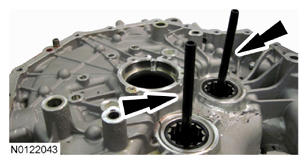

Fig 1: Locating Lube Feed Tubes
Courtesy of FORD MOTOR CO.
NOTE: If the clutch housing output shaft bearing is broken, use the next size larger special tool.

NOTE: The clutch housing output shaft bearing 1 is shown in illustration, the clutch housing output shaft bearing 2 is similar.

Using the special tool, remove the 2 clutch housing output shaft bearings.

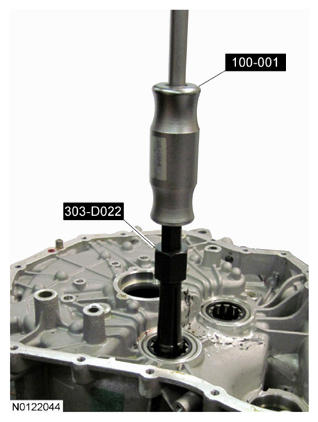

Fig 2: Removing Clutch Housing Output Shaft Bearings Using Special Tool
Courtesy of FORD MOTOR CO.
Using the special tools, remove the clutch housing differential bearing race and shim.

Fig 3: Removing Clutch Housing Differential Bearing Race And Shim Using Special Tools
Courtesy of FORD MOTOR CO.
