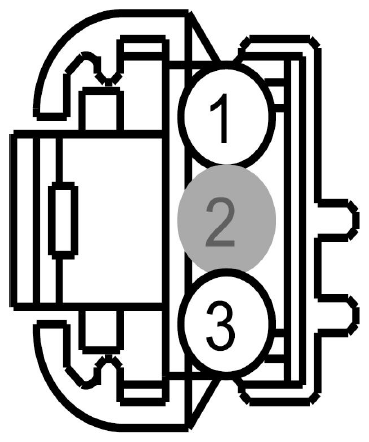

Tweeter, Left Front Connector End View (C513)

Fig 1: Identifying Tweeter, Left Front Connector (C513)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function
1	VME08 (GN-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER
2	*	*	Not Used
3	RME08 (GY-OG)	20	CTRL MOD. - AUDIO # SPEAKER LEFT FRONT TWEETER

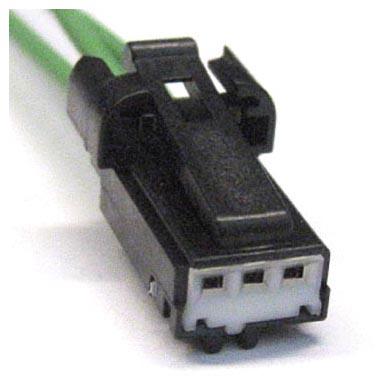

Available Pigtail Kits
Pigtail Kit Part Number WPT-911	Service Part Number: 8U2Z-14S411-LA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses Fuse Panel Junction Block Lamp - Ambient Lighting Lamp - Front Park Lamp - Map Lamp - Park/Turn Lamp - PRNDL Indicator Lamp - Roof Marker Module - Driver Door Sensor - Speed Switch - Ambient Lighting Dimmer
