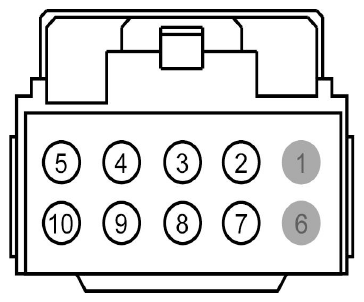

MULTIFUNCTION Switch Connector End View (C202)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | VME14 (GY-YE) | 22 | SWITCH - REDUNDANT AUDIO | |
| 3 | RMC27 (WH-BN) | 22 | CTRL MOD. - INSTRUMENT CLUSTER # SWITCH INFORMATION / MESSAGE CENTER SELECT | |
| 4 | CLS39 (VT-WH) | 22 | SWITCH - TURN LEFT | |
| 5 | CLF27 (GN-BN) | 22 | SWITCH - FLASH TO PASS | |
| 6 | * | * | Not Used | |
| 7 | RME24 (BU-WH) | 22 | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | |
| 8 | CLS41 (GY-YE) | 22 | SWITCH - TURN RIGHT | |
| 9 | GD115 (BK-GY) | 22 | GROUND - CROSS CAR BEAM # 2ND STUD | |
| 10 | CLF17 (WH-OG) | 22 | SWITCH - BEAM HIGH |
