Input Shaft Speed Sensor 2 Connector End View (C164)

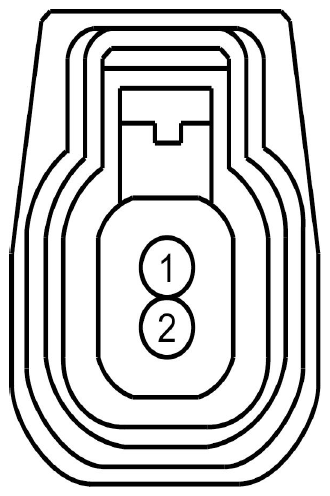

Fig 1: Identifying Input Shaft Speed Sensor 2 Connector (C164)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BU)	22	ISS2 SPEED SENSOR SUPPLY
2	* (WH-BU)	22	ISS2 INPUT SPEED
