Input Shaft Speed Sensor 1 Connector End View (C143)

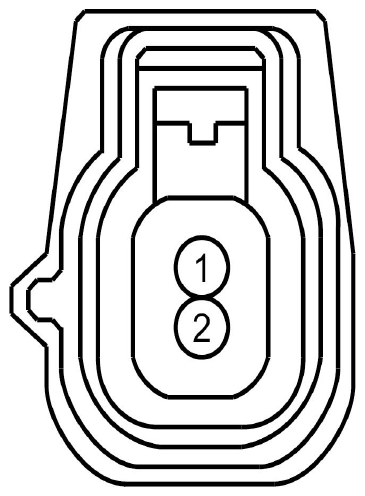

Fig 1: Identifying Input Shaft Speed Sensor 1 Connector (C143)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (PK-GN)	22	ISS1 SPEED SENSOR SUPPLY
2	* (GN-BN)	22	ISS1 INPUT SPEED DIR
