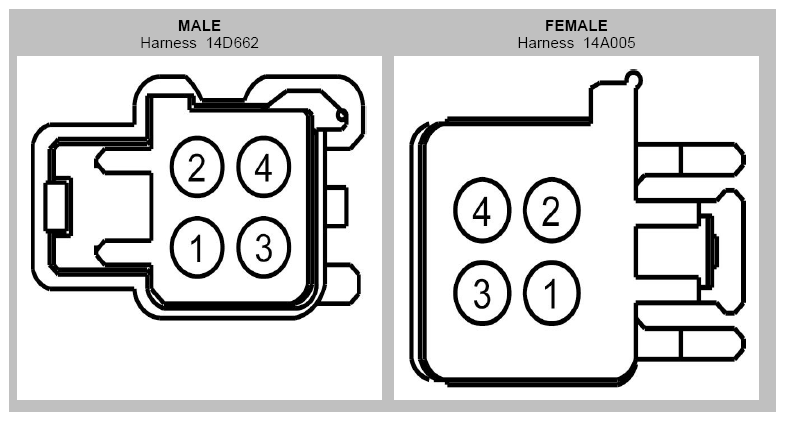

Inline Connector End View (C314)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* (BK) |
12 |
14D662 |
| 1 |
GD145 (BK-BU) |
12 |
14A005 |
| 2 |
* (RD) |
12 |
14D662 |
| 2 |
SBP33 (RD) |
12 |
14A005 |
| 3 |
* (BK) |
12 |
14D662 |
| 3 |
GD145 (BK-BU) |
12 |
14A005 |
| 4 |
* (RD) |
12 |
14D662 |
| 4 |
CDC17 (GY-YE) |
12 |
14A005 |
