Rear Ho2S Monitor

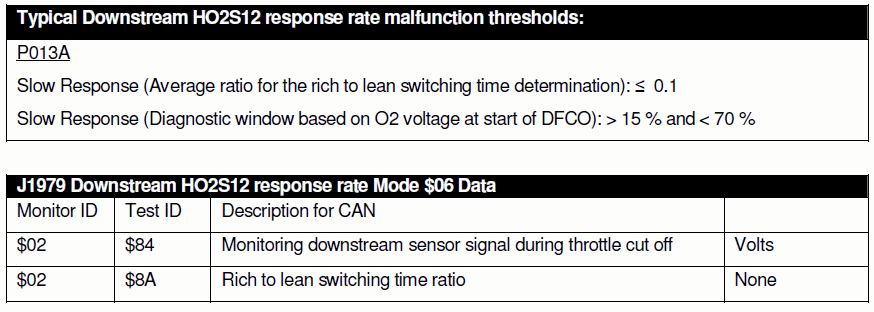

Fig 1: Mode $06 Data For Rear HO2S Response Rate Monitor

G00517091

Courtesy of FORD MOTOR CO.
