Notes
Power Distribution: Notes

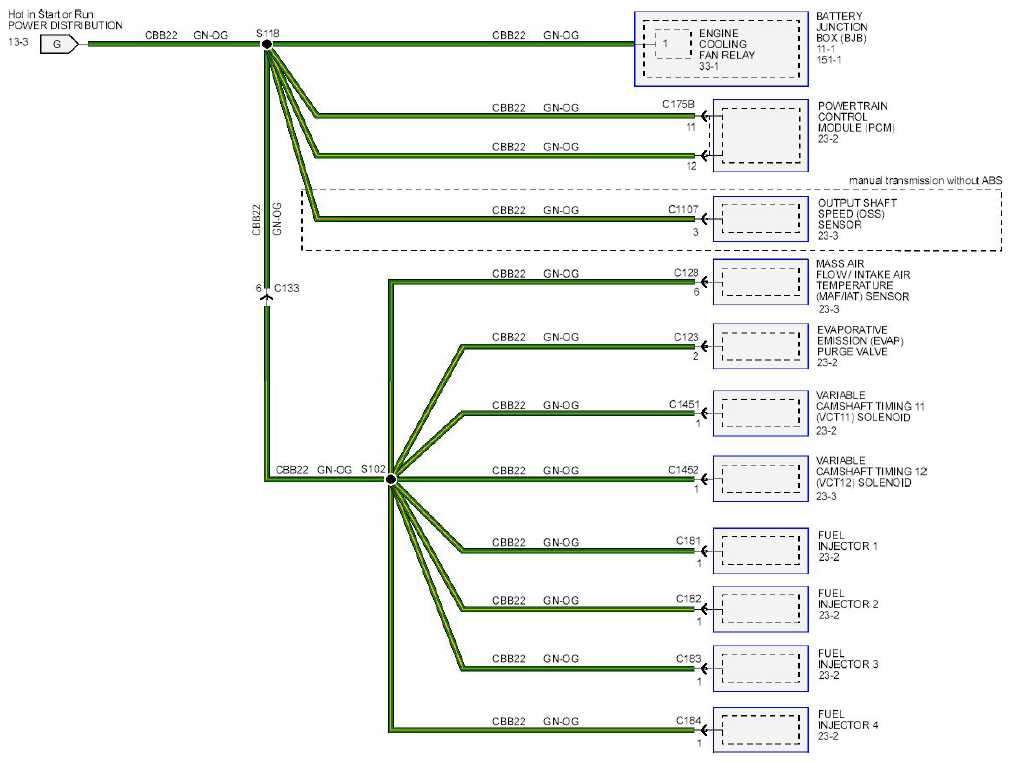

Fig 1: Power Distribution Wiring Diagram - (1 Of 4)
Courtesy of FORD MOTOR CO.

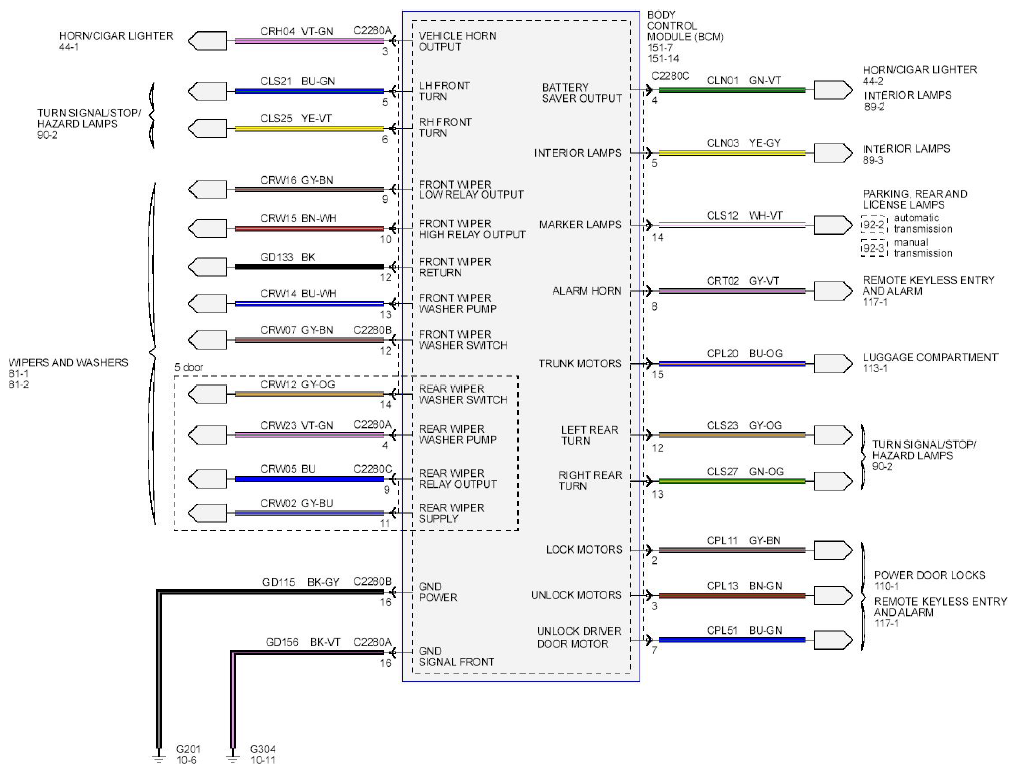

Fig 2: Power Distribution Wiring Diagram - (2 Of 4)
Courtesy of FORD MOTOR CO.

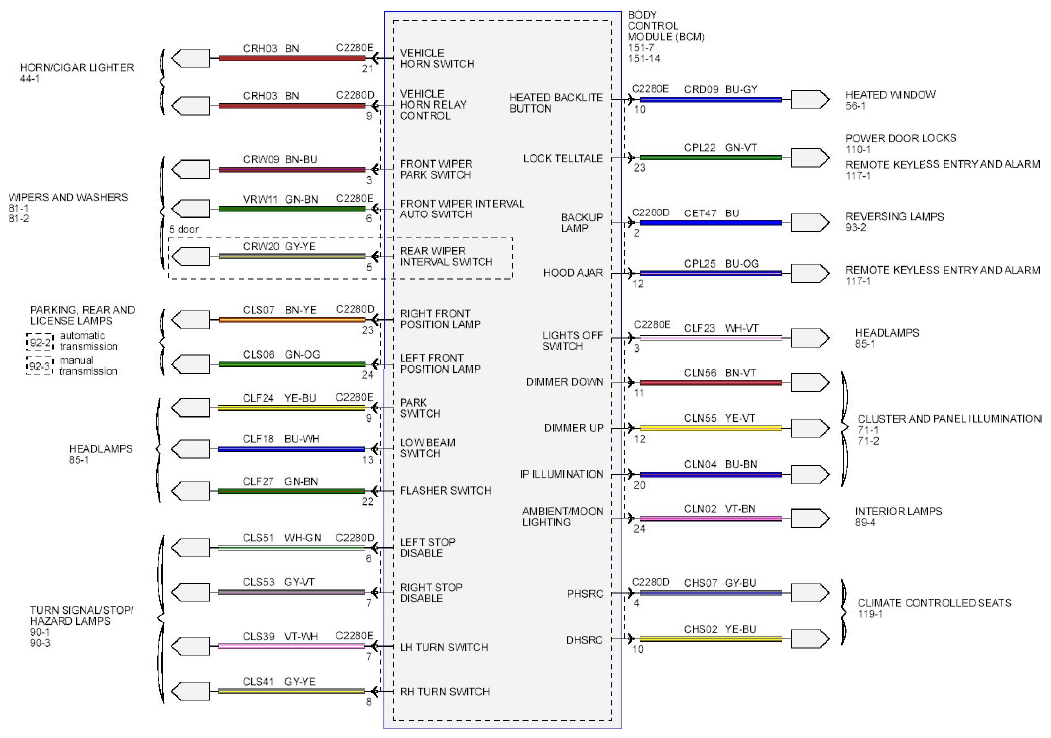

Fig 3: Power Distribution Wiring Diagram - (3 Of 4)
Courtesy of FORD MOTOR CO.

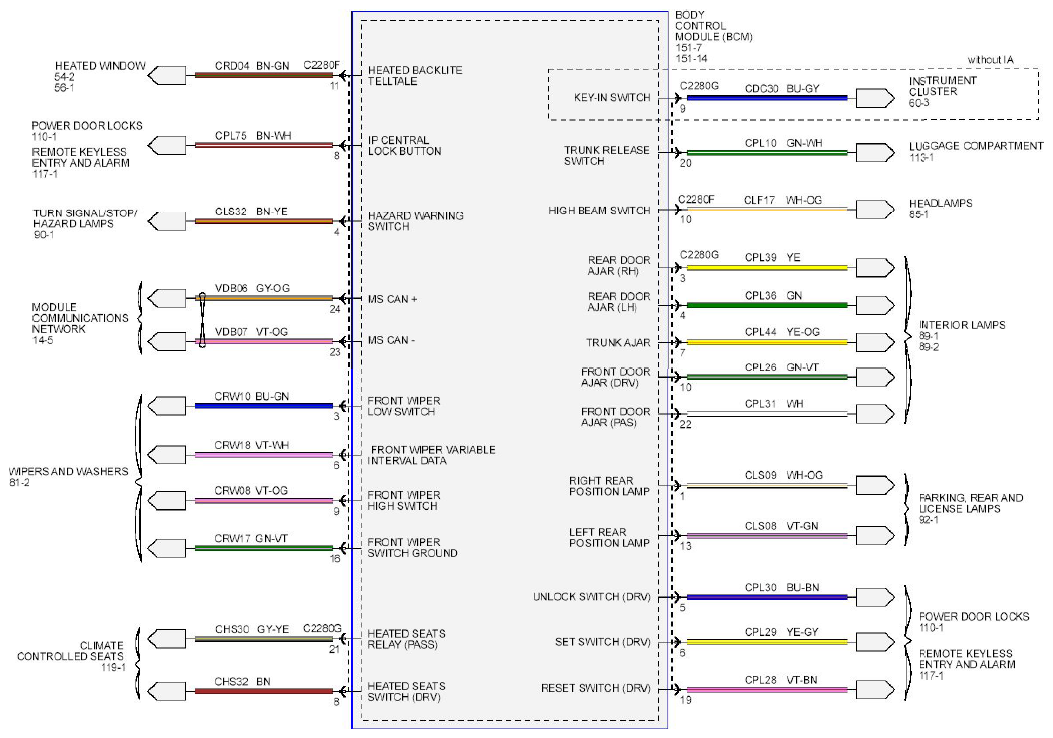

Fig 4: Power Distribution Wiring Diagram - (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
