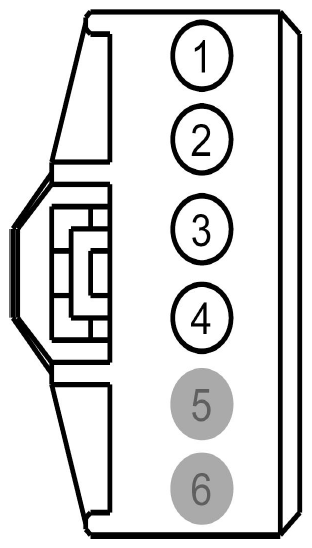

Liftgate/DECKLID Latch Assembly Connector End View (C4223)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPL20 (BU-OG) | 16 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO LOCK | |
| 2 | GD143 (BK-VT) | 20 | GROUND - PILLAR B LEFT | |
| 3 | CPL44 (YE-OG) | 20 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 4 | CLN13 (WH-BU) | 20 | SWITCH - TRUNK/CARGO LAMP | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used |

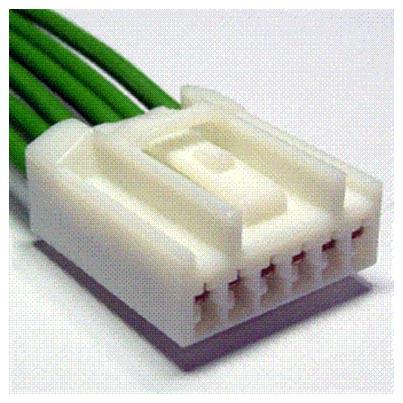

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1119 | Service Part Number: AU2Z-14S411-AVA Gauge: 16 Pin material: Silver Cavities: 6 Vehicle Uses
|
