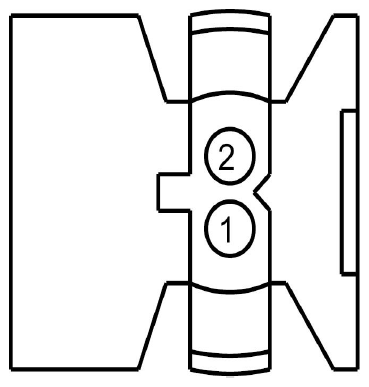

Driver Air Bag Module Connector End View (C216B)

Fig 1: Identifying Driver Air Bag Module Connector (C216B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (BN)	*	CTRL MOD. - AIR BAG DRIVER 2
2	* (BU)	*	CTRL MOD. - AIR BAG DRIVER 2

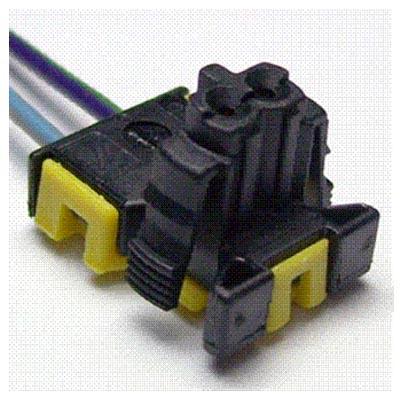

Available Pigtail Kits
Pigtail Kit Part Number WPT-1230	Service Part Number: BU2Z-14S411-BPA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Airbag - Side Curtain Squib - Airbag (Passenger)
