Driver Air Bag Module Connector End View (C216A)

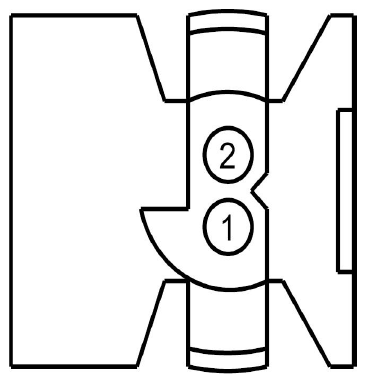

Fig 1: Identifying Driver Air Bag Module Connector (C216A)
G08668978Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 * (WH) * CTRL MOD. - AIR BAG DRIVER 1
2 * (OG) * CTRL MOD. - AIR BAG DRIVER 1
