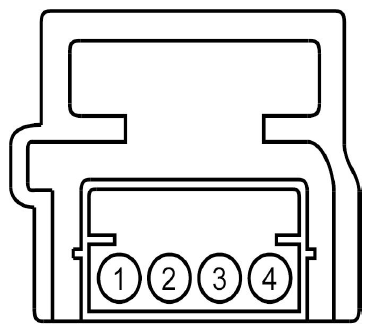

CLOCKSPRING Connector End View (C218A)

Fig 1: Identifying Clockspring Connector (C218A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1
2	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1
3	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 1
4	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2
