Steering Wheel: Notes

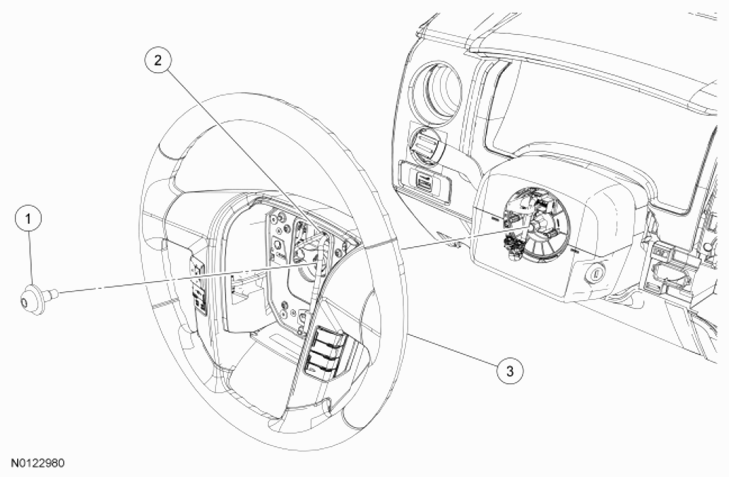

Fig 1: Identifying Steering Wheel, Switches Electrical Connector And Bolt
G07410260Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709344 Steering wheel bolt
2 - Steering wheel switches electrical connector (part of 3600)
3 3600 Steering wheel
