Selector Lever Knob: Notes

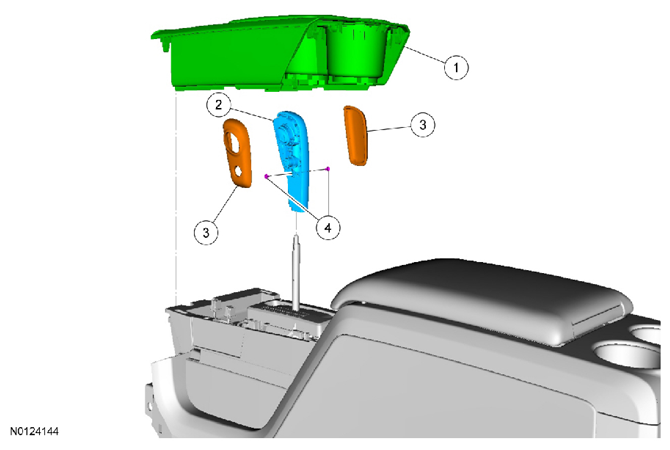

Fig 1: Identifying Selector Lever Knob Components
G08341248Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Console upper trim panel
2 7213 Selector lever knob
3 7L468 Selector lever knob covers
4 W790088 Selector lever knob screws
