Window Control Switch, Left Rear Connector End View (C701)

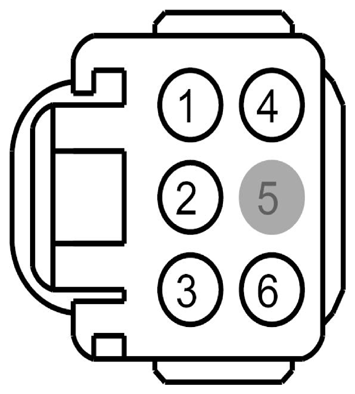

Fig 1: Window Control Switch, Left Rear Connector End View (C701)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPW16 (BU-OG)	12	SWITCH - POWER WINDOW DRIVER # REAR LEFT UP
2	CPW14 (VT-WH)	12	SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE)
3	CPW15 (YE)	12	SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN
4	CPW22 (GN-VT)	14	SWITCH - POWER WINDOW REAR LEFT # UP
5	*	*	Not Used
6	CPW21 (BN)	14	SWITCH - POWER WINDOW REAR LEFT # DOWN

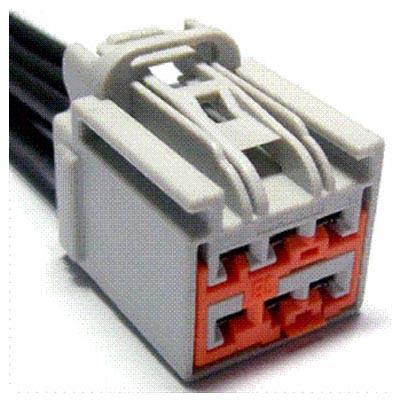

Available Pigtail Kits

Pigtail Kit Part Number WPT-1019

Service Part Number: 3U2Z-14S411-XVB  Gauge: 12  Pin material: Tin  Cavities: 6  Vehicle Uses Junction Box - Relay Switch - Adjustable Pedal Switch - Moon Roof/Sun Roof Switch - Power Window - Driver Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - Quarter Glass Switch - Power Window - RH - Rear Switch - Seat Passenger Side (2nd Row) Switch - Third Row Power Folding Seat
