Selector Lever Cable - 6F50/6F55: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to JACKING AND LIFTING , Lifting Points.
  2. Remove the air cleaner outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .
  3. Disconnect the selector lever cable end from the manual control lever.
    G07430631
  4. Release the 2 tabs, remove the selector lever cable from the selector lever cable bracket.
    G07430632

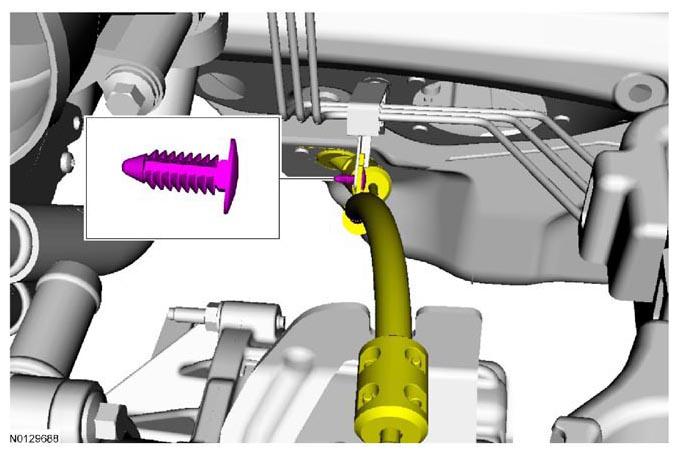

  5. Remove the selector lever cable bracket pushpin.
    G07430633
  6. Position the drivers seat to the full rearward and downward position and fully recline the seat back.
  7. Remove the LH floor console side trim panel.
    G07430634
  8. NOTE: The console upper finish panel is removed for clarity.

    Disconnect the selector lever cable from the selector lever.

    G07430635
  9. Remove the selector lever cable from the selector lever cable bracket and discard the selector lever cable retaining clip.
    1. Release the 2 selector cable retaining tabs and pull the selector lever outward.
      G07430636

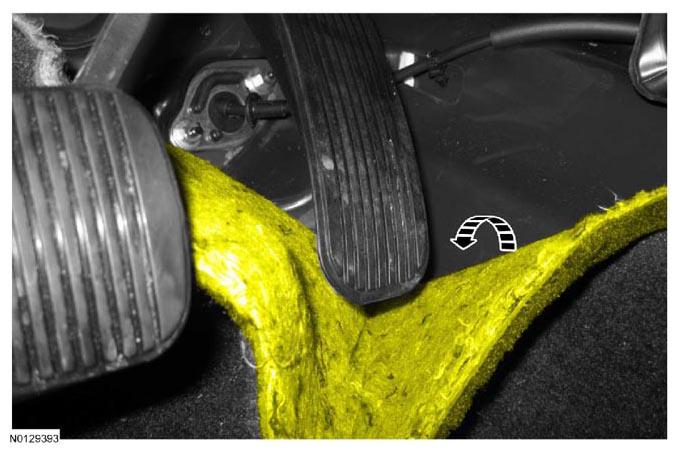

  10. Position the carpet aside.
    G07430637

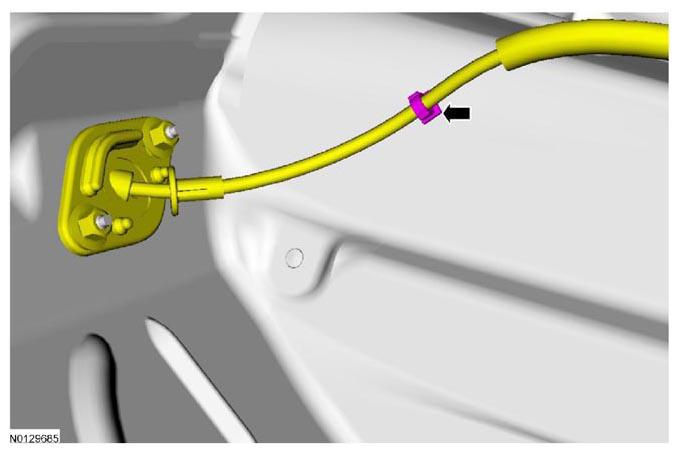

  11. Release the selector lever cable from the pin-type retainer.
    G07430638
  12. Remove the 2 nuts from the grommet, route the selector lever cable from the engine compartment through the floor and remove the selector lever cable from the passenger compartment.
    G07430639
