Steering Column Shroud: Installation

  1. To install, reverse the removal procedure.

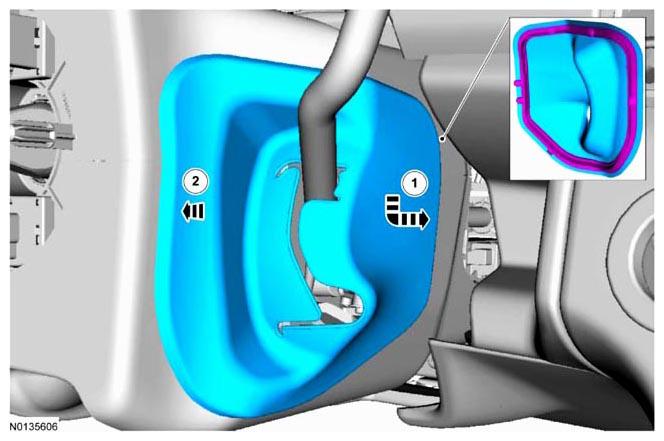

  2. NOTE: Make sure the column selector lever boot retaining tabs are installed into the steering column shroud first, otherwise damage to the column selector lever boot retaining tabs may occur.

    For vehicles with a column selector lever.

    G08662597Courtesy of FORD MOTOR CO.
