Starting System
>>
With IA
With IA

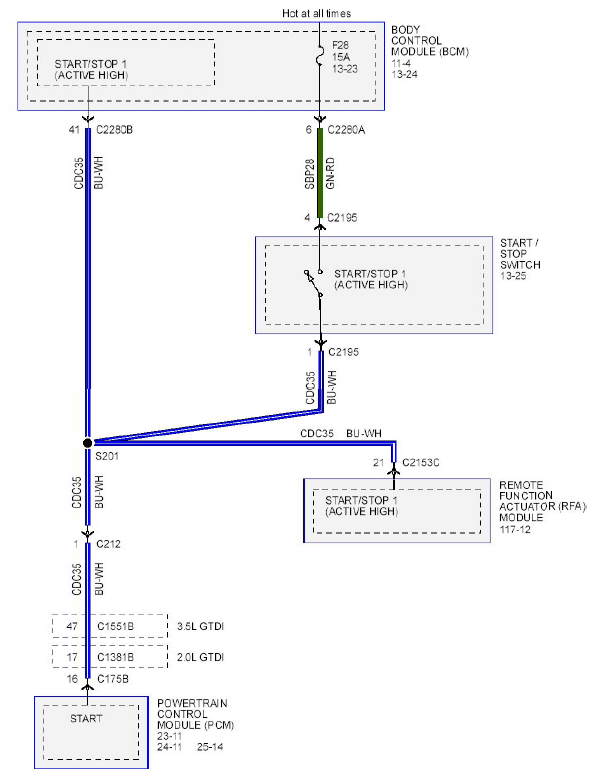

Fig 1: Starting System - Wiring Diagram (With IA)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
