Shift Interlock
>>
With Paddle Shift
With Paddle Shift

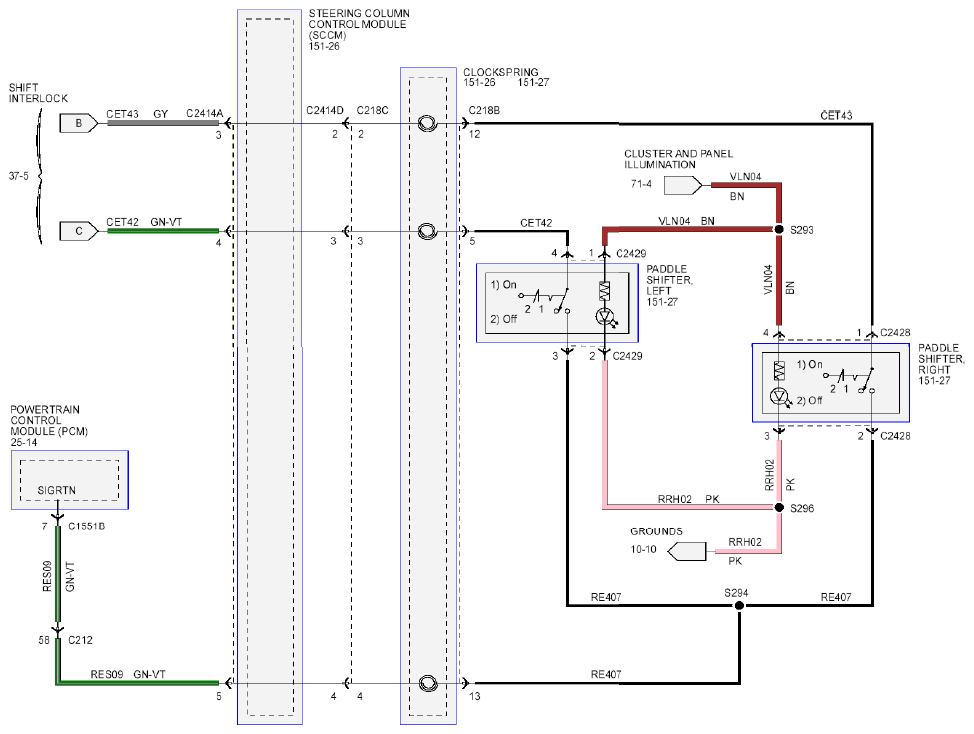

Fig 1: Shift Interlock - Wiring Diagram (With Paddle Shift)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
