Shift Interlock
>>
Column Shifter
Column Shifter

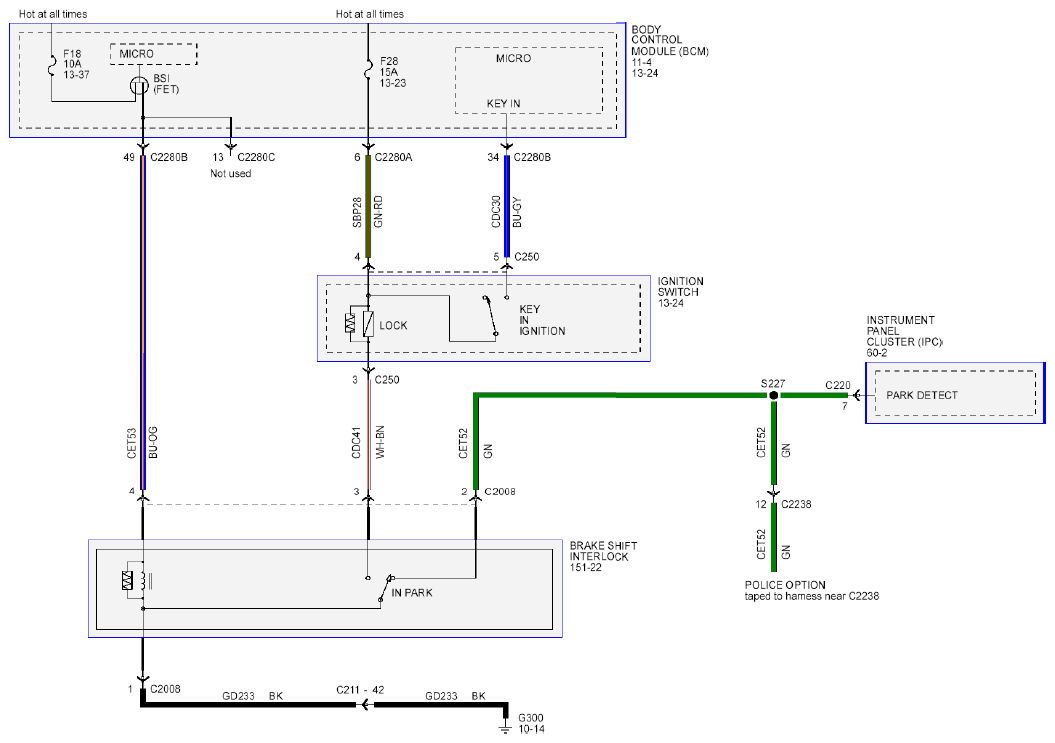

Fig 1: Shift Interlock - Wiring Diagram (Column Shifter)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
