Ford
>>
2013
>>
Explorer Police Interceptor, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Liftgate
Power Liftgate

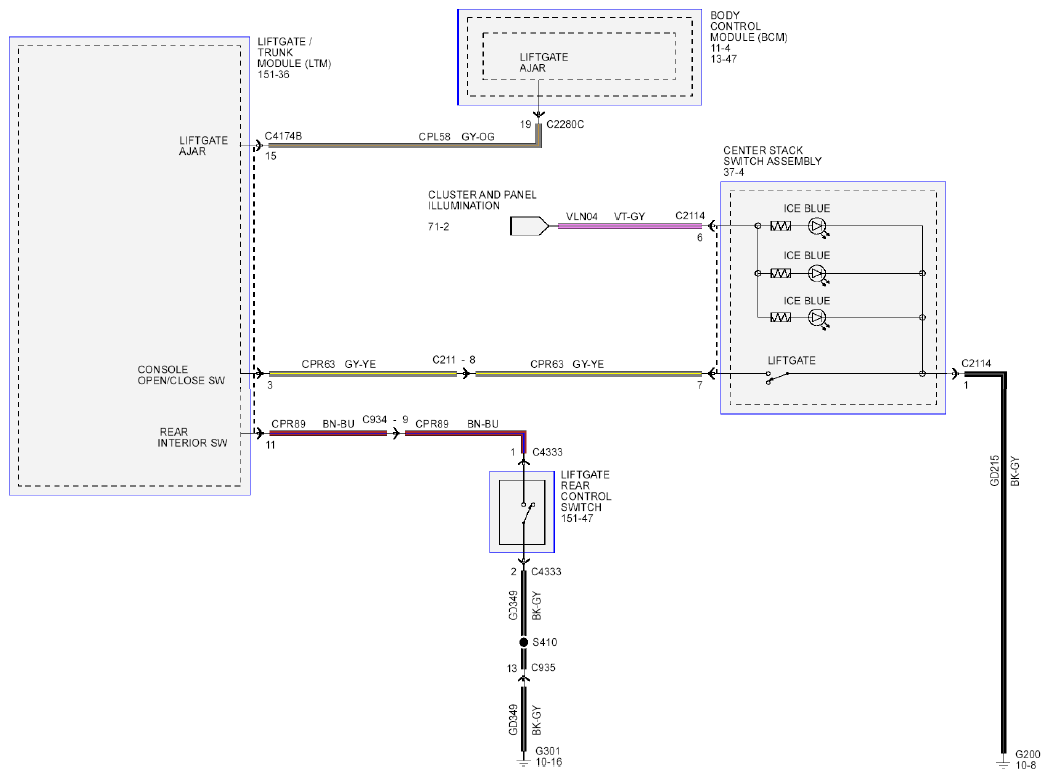

Fig 1: Power Liftgate - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

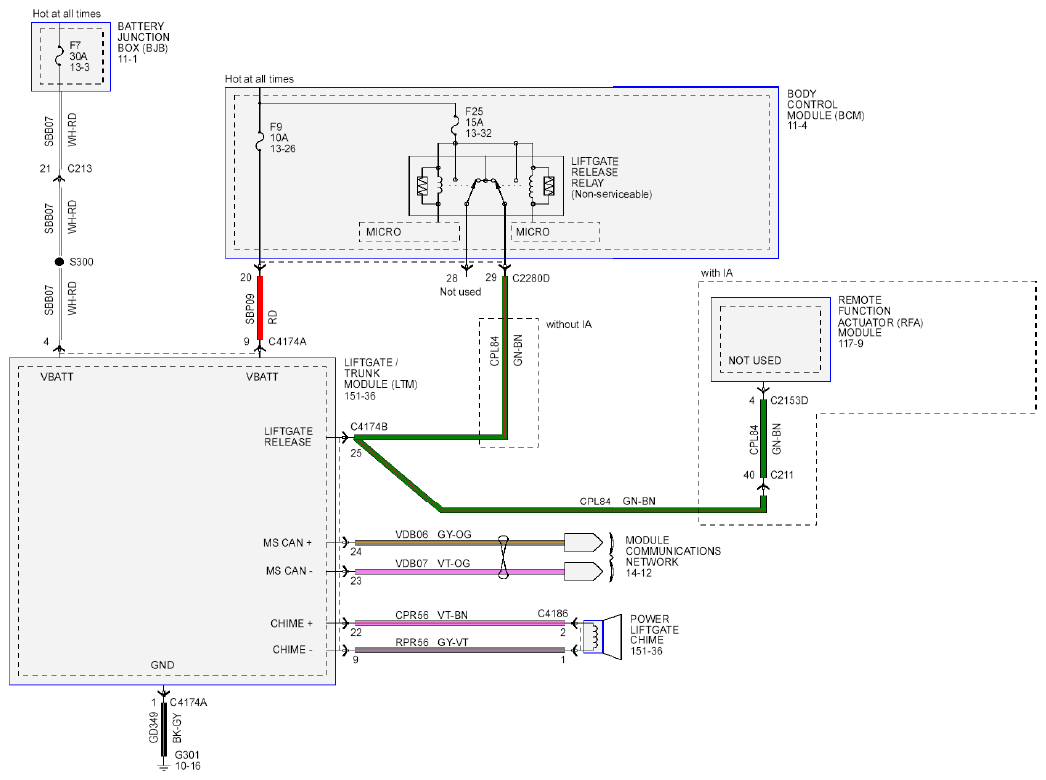

Fig 2: Power Liftgate - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

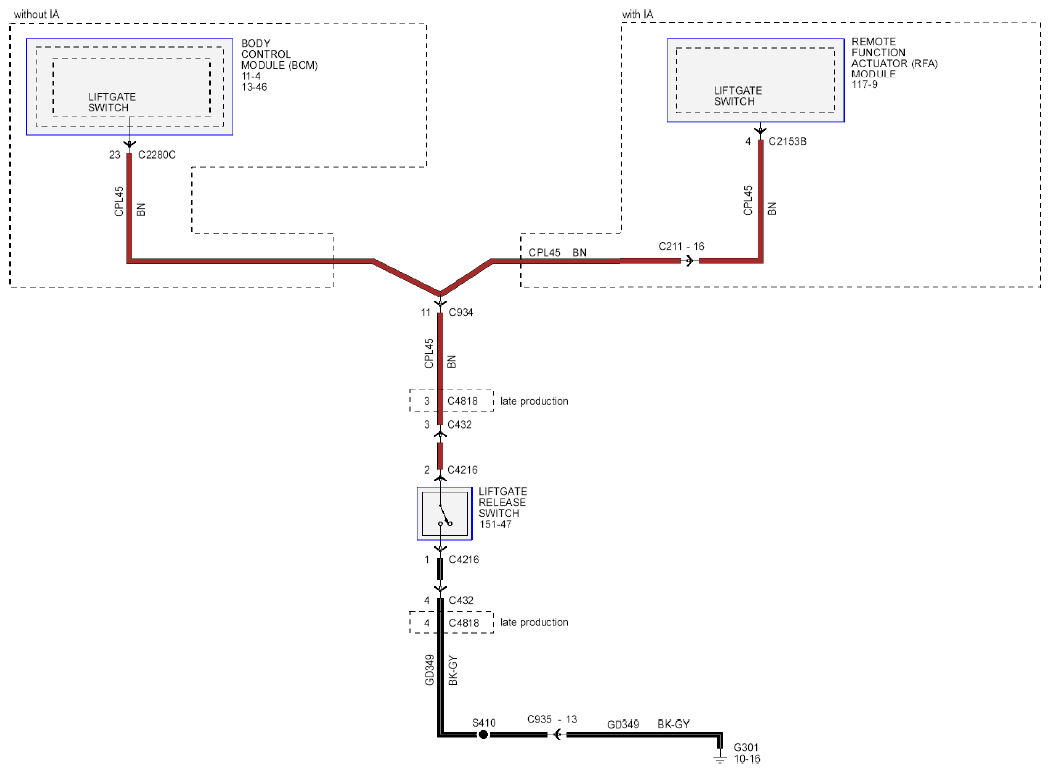

Fig 3: Power Liftgate - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

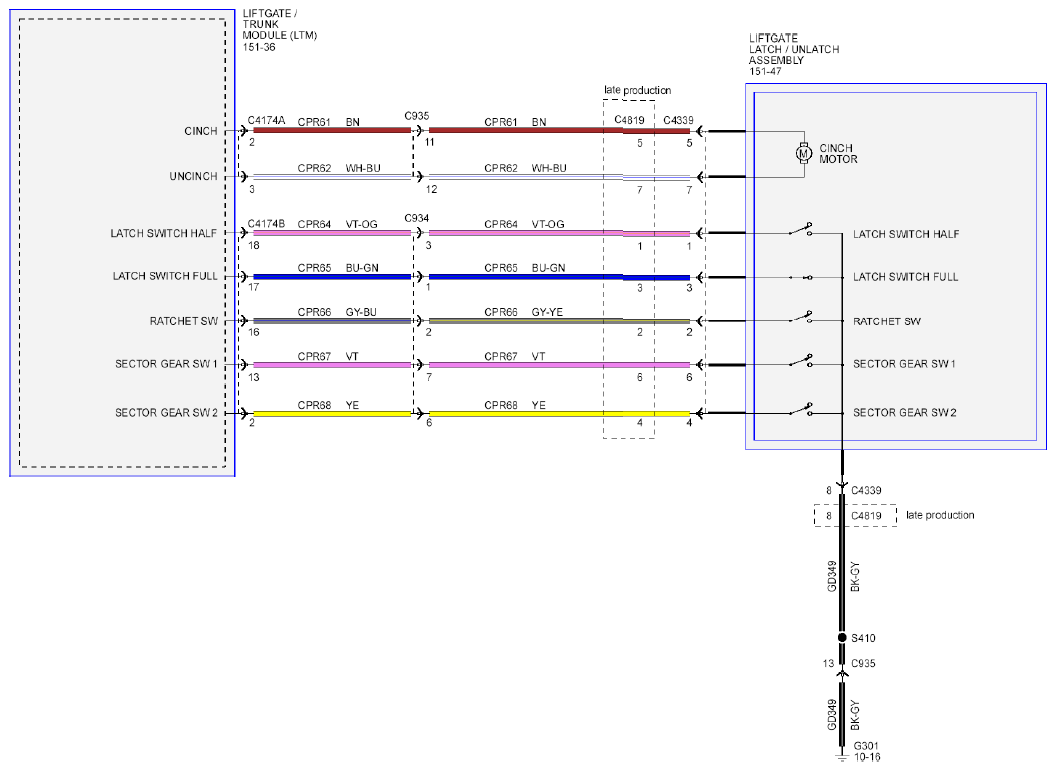

Fig 4: Power Liftgate - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

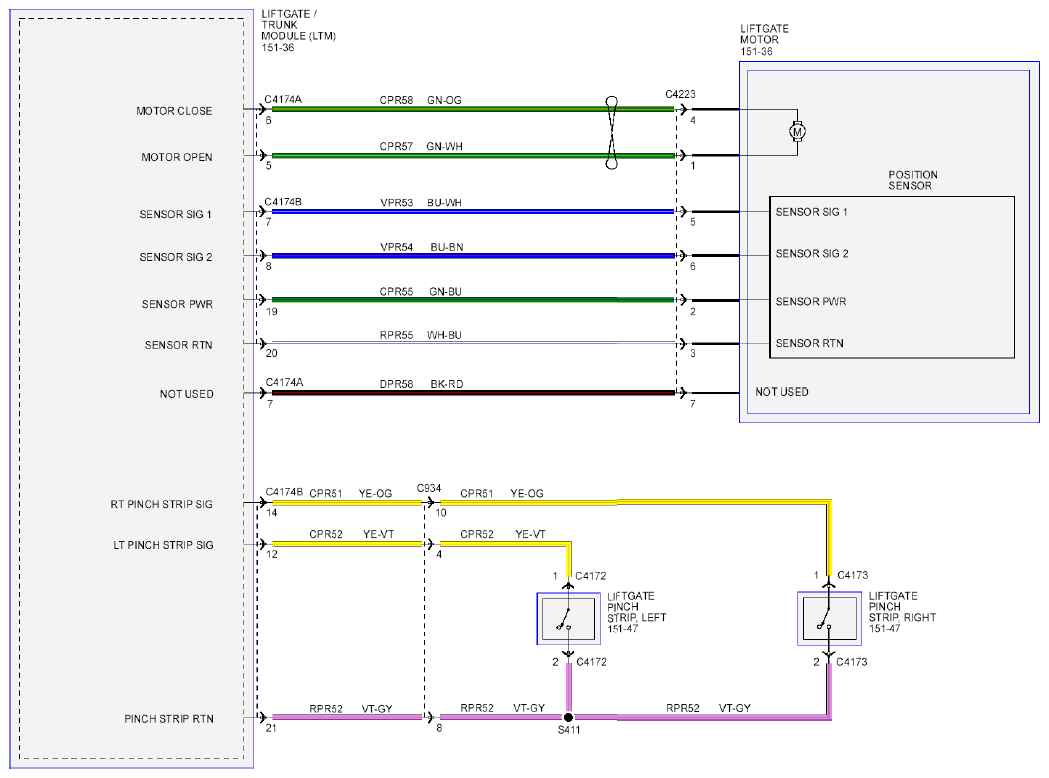

Fig 5: Power Liftgate - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
