Power Distribution/BCM: Notes

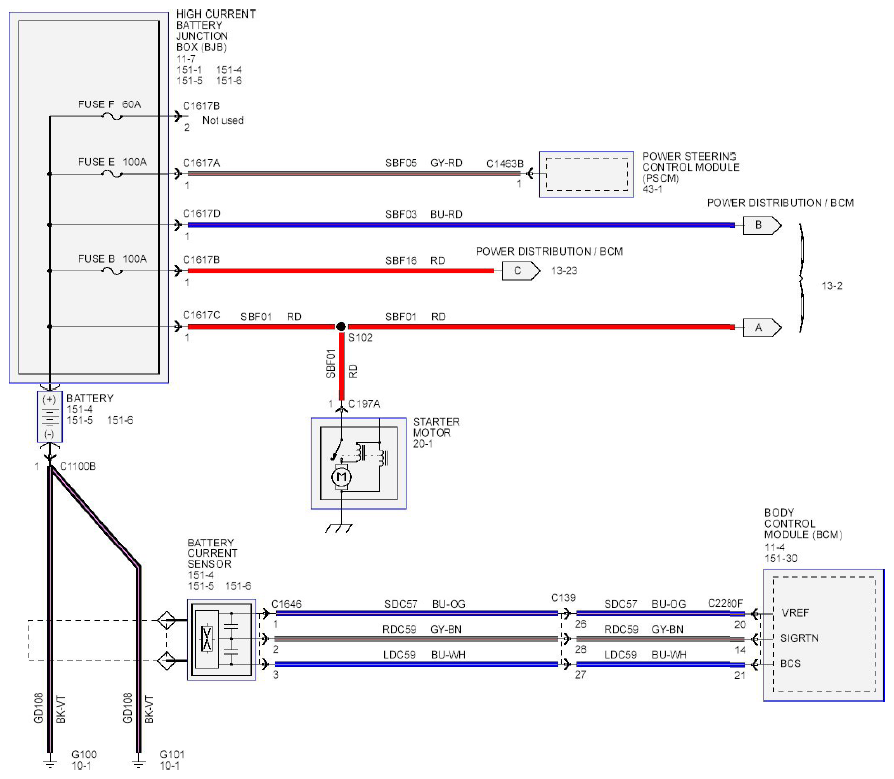

Fig 1: Power Distribution/BCM - Wiring Diagram

G08748296

Courtesy of FORD MOTOR CO.
