Power Distribution/BCM: F70

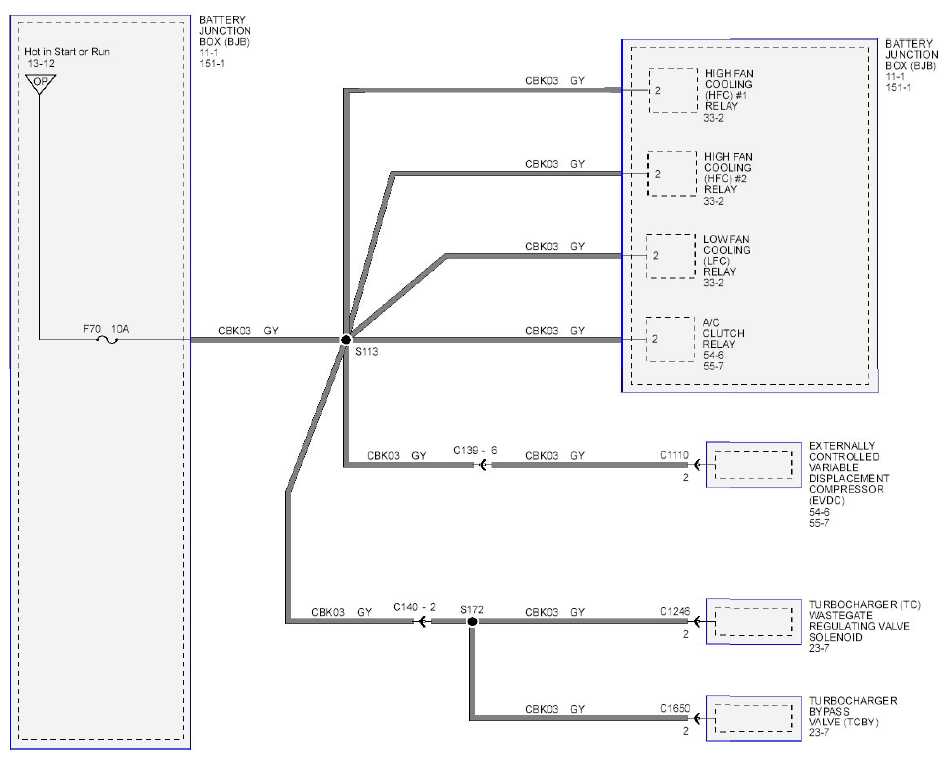

Fig 1: Power Distribution/BCM - Wiring Diagram - F70 (2.0L GTDI)
G08748308Courtesy of FORD MOTOR CO.


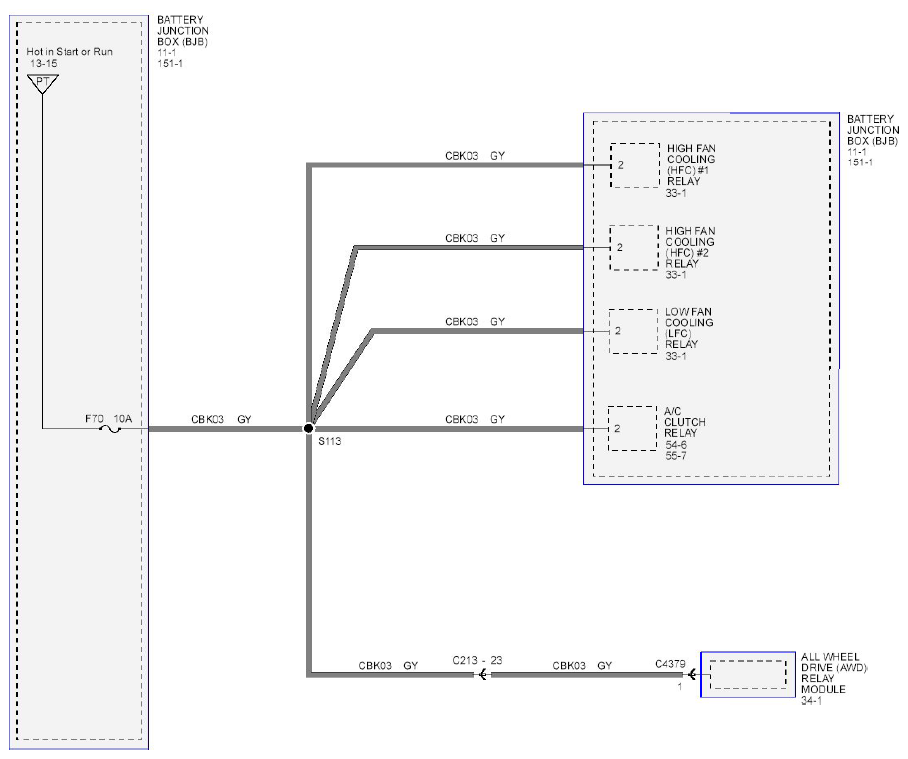

Fig 1: Power Distribution/BCM - Wiring Diagram - F70 (3.5L/3.7L TIVCT)
G08748311Courtesy of FORD MOTOR CO.

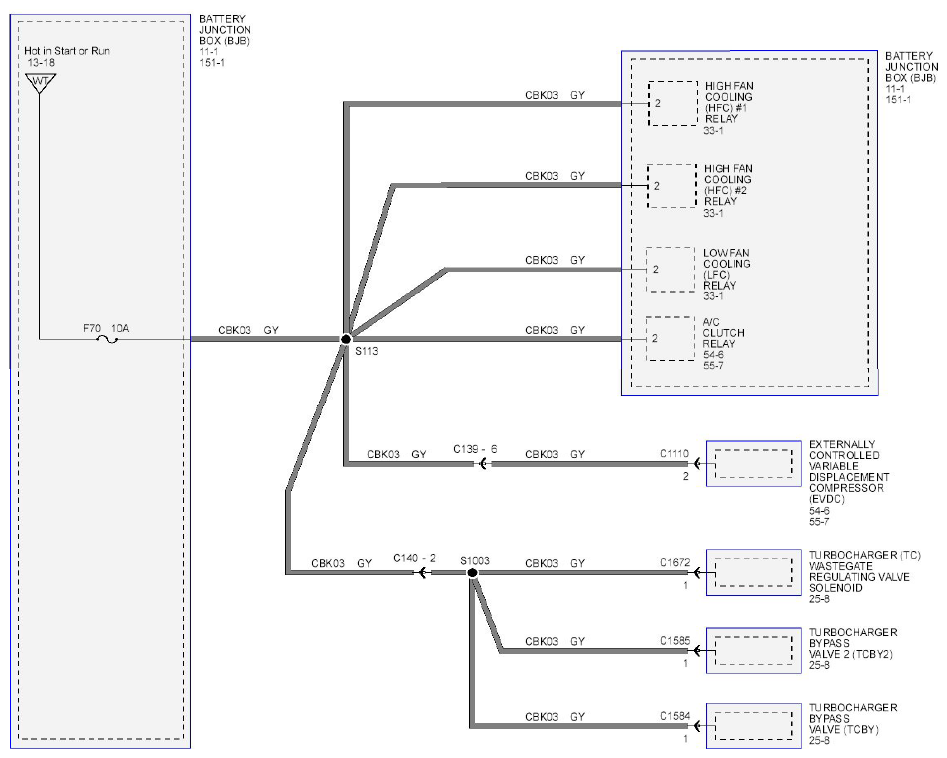

Fig 1: Power Distribution/BCM - Wiring Diagram - F70 (3.5L GTDI)
G08748314Courtesy of FORD MOTOR CO.
