Power Distribution/BCM: F67

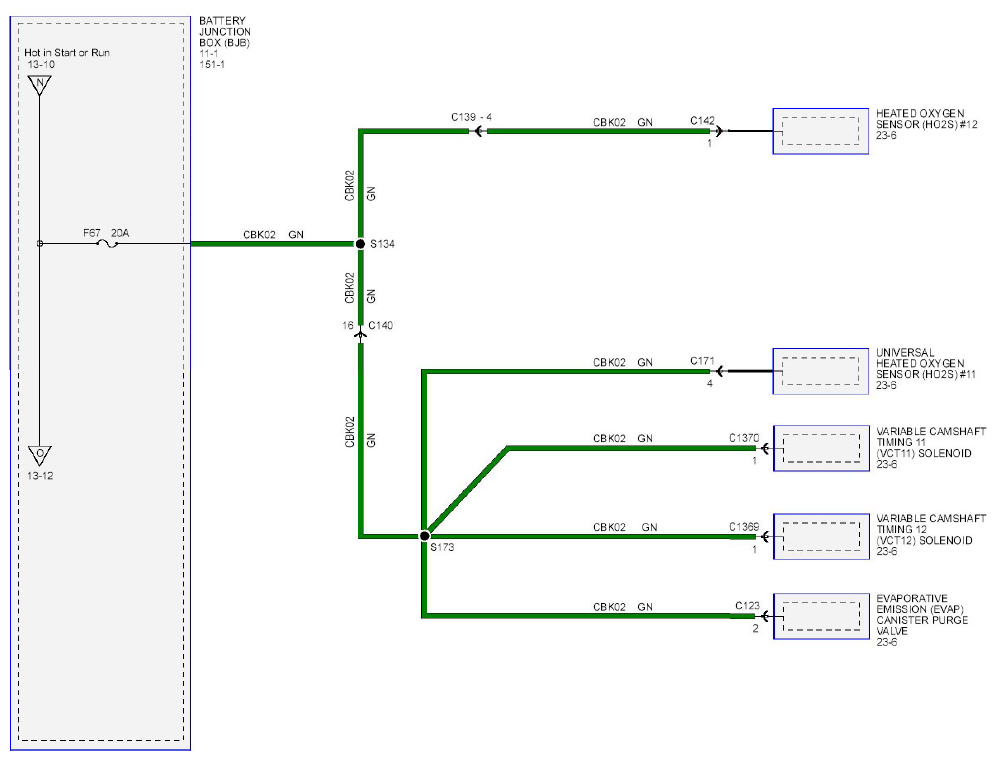

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (2.0L GTDI)
G08748306Courtesy of FORD MOTOR CO.

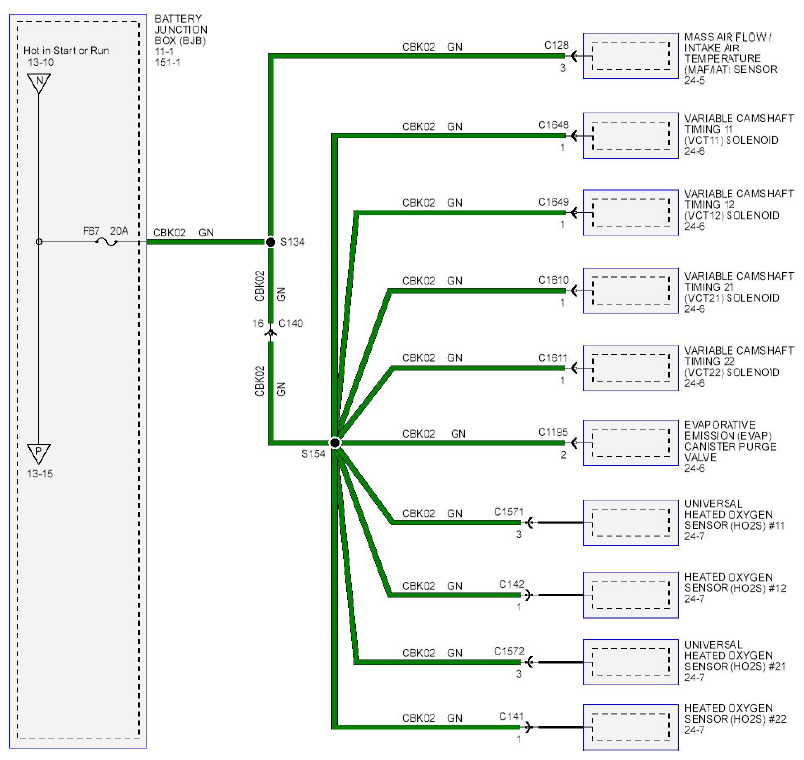

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (3.5L/3.7L TIVCT)
G08748309Courtesy of FORD MOTOR CO.

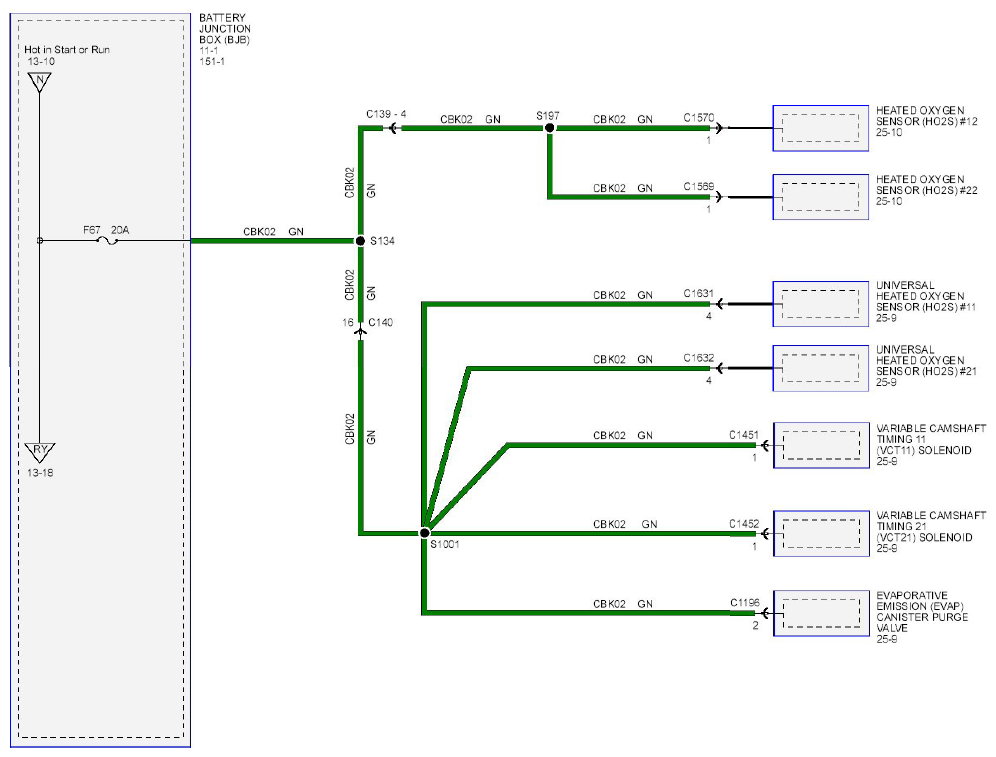

Fig 1: Power Distribution/BCM - Wiring Diagram - F67 (3.5L GTDI)
G08748312Courtesy of FORD MOTOR CO.
