Explorer Police Interceptor, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Distribution/BCM
>>
F4
Power Distribution/BCM: F4

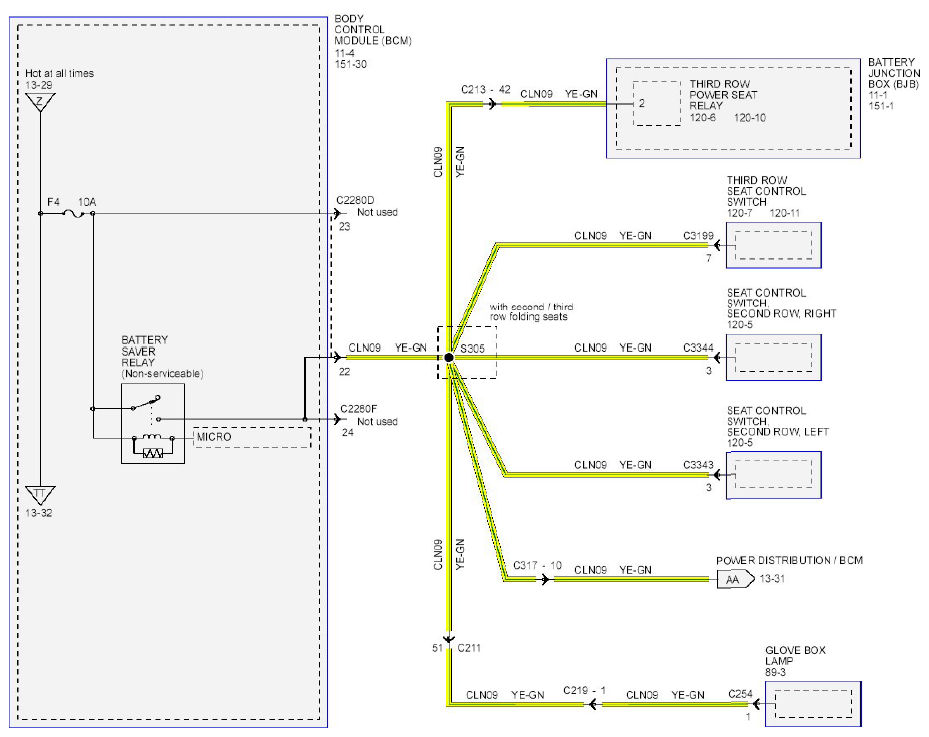

Fig 1: Power Distribution/BCM - Wiring Diagram - F4 (1 Of 2)
Courtesy of FORD MOTOR CO.

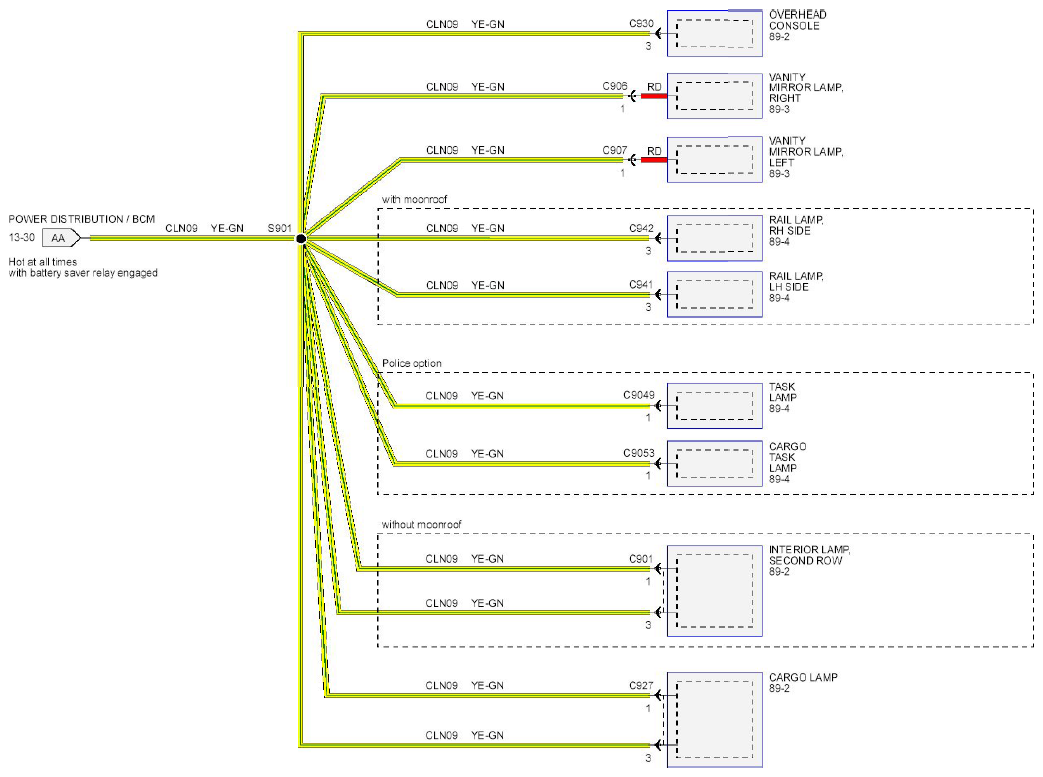

Fig 2: Power Distribution/BCM - Wiring Diagram - F4 (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
