Power Distribution/BCM: F25

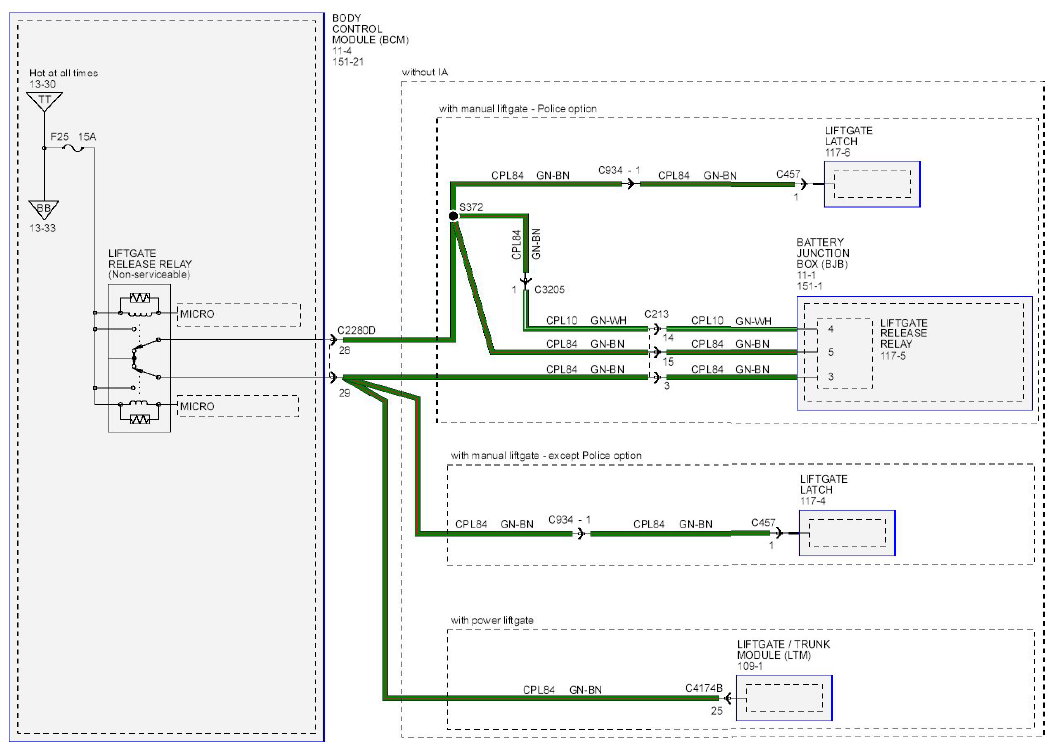

Fig 1: Power Distribution/BCM - Wiring Diagram - F25

G08748327

Courtesy of FORD MOTOR CO.
