Power Distribution/BCM: F20

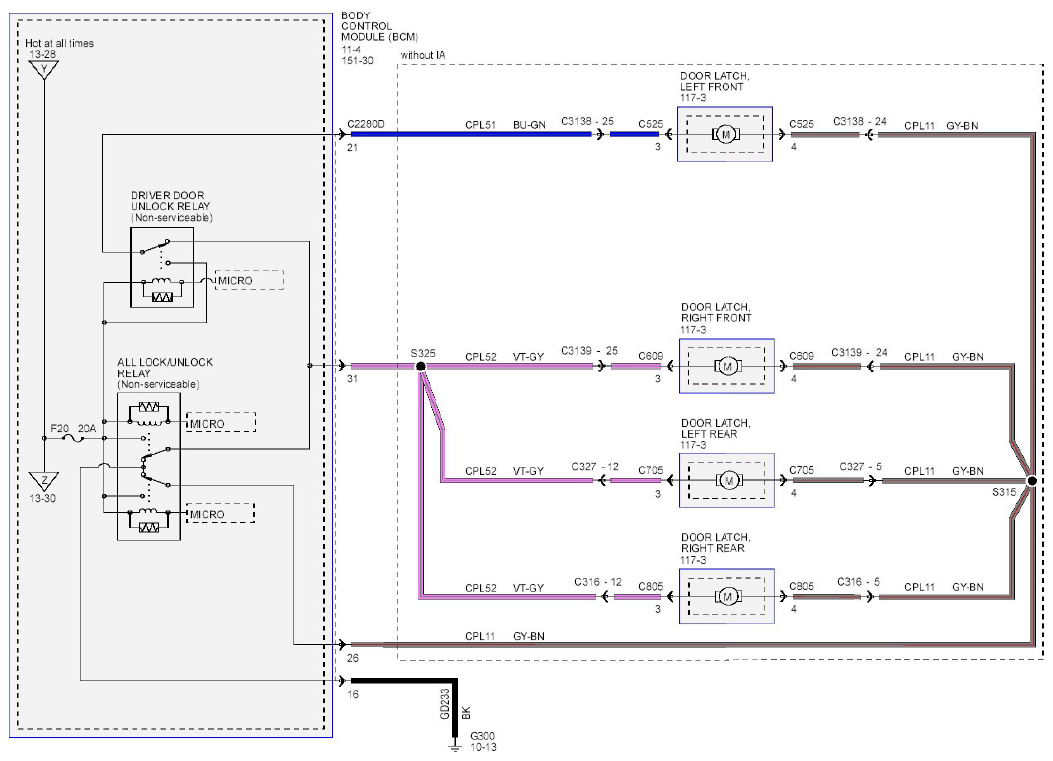

Fig 1: Power Distribution/BCM - Wiring Diagram - F20

G08748324

Courtesy of FORD MOTOR CO.
