Power Distribution/BCM: F18

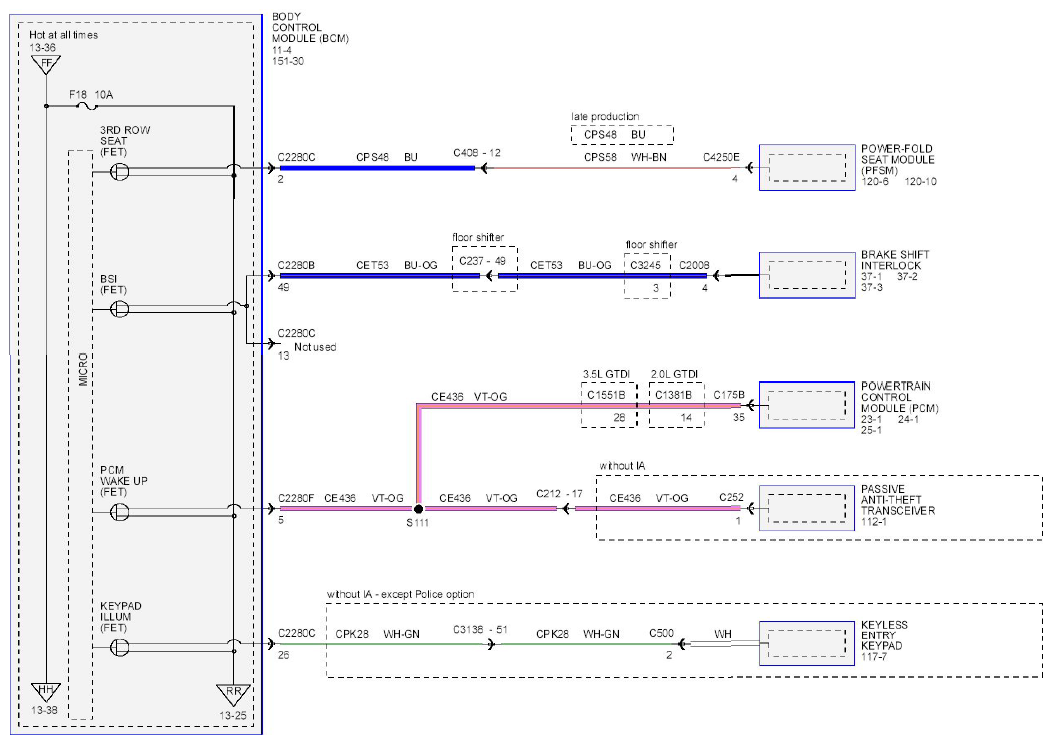

Fig 1: Power Distribution/BCM - Wiring Diagram - F18

G08748332

Courtesy of FORD MOTOR CO.
