Power Distribution/BCM: F13

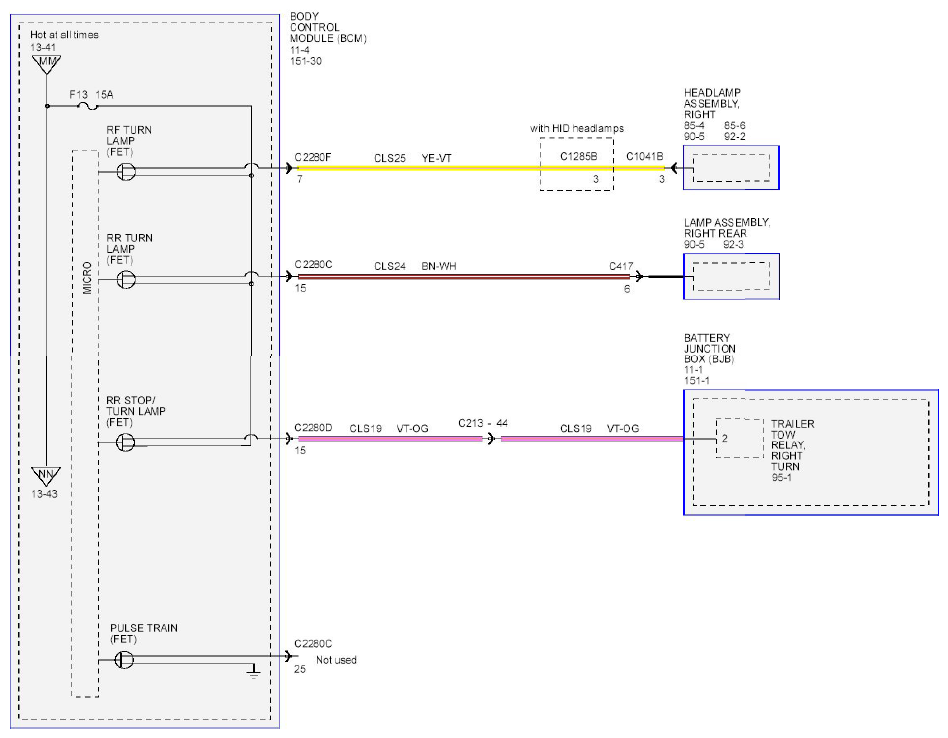

Fig 1: Power Distribution/BCM - Wiring Diagram - F13

G08748337

Courtesy of FORD MOTOR CO.
