Power Distribution/BCM: F12

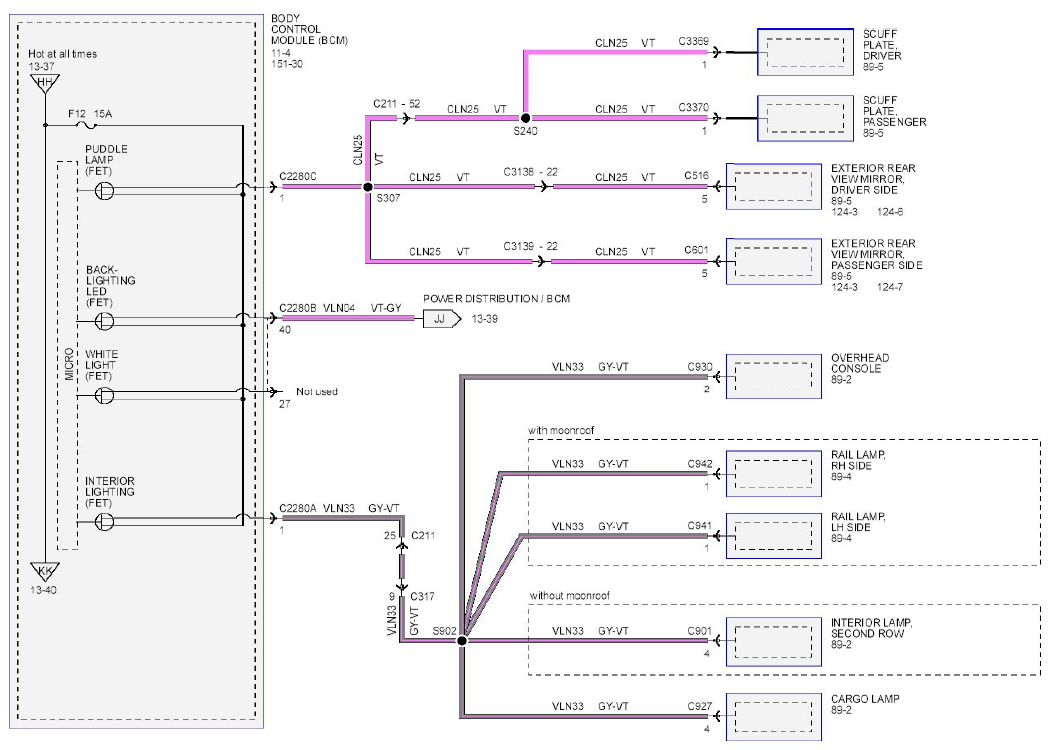

Fig 1: Power Distribution/BCM - Wiring Diagram - F12 (1 Of 2)
G08748333Courtesy of FORD MOTOR CO.

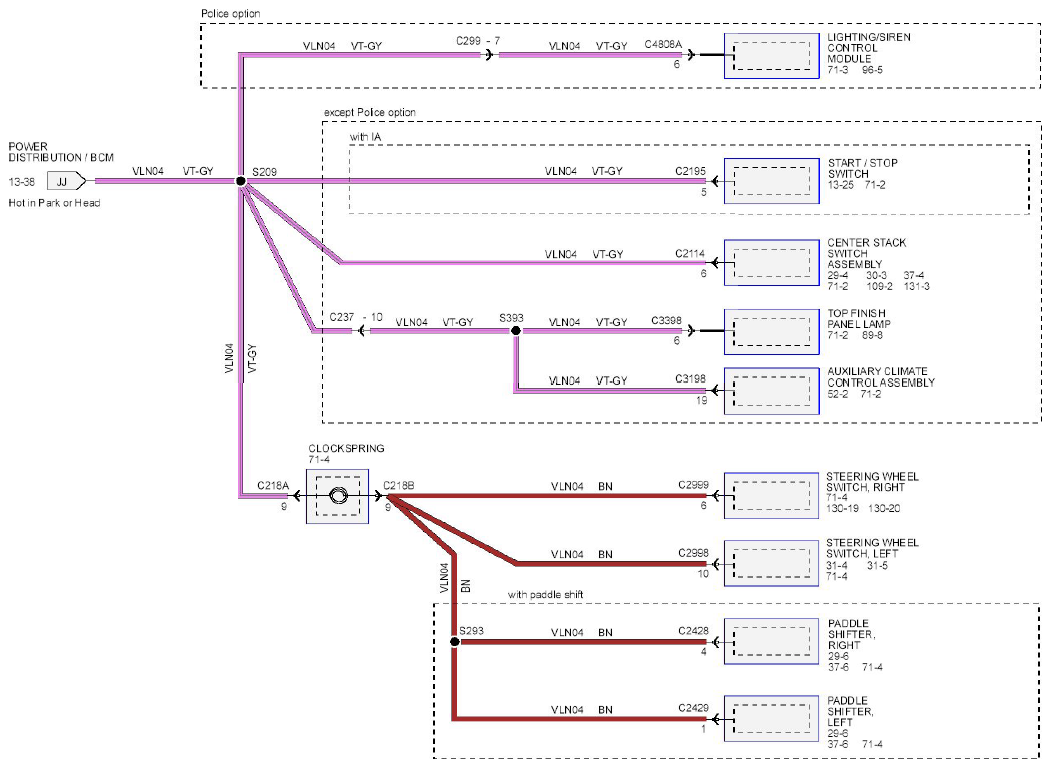

Fig 2: Power Distribution/BCM - Wiring Diagram - F12 (2 Of 2)
G08748334Courtesy of FORD MOTOR CO.
