Ford
>>
2013
>>
Explorer Police Interceptor, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Module Communication Network
>>
Sync Gen 2
Sync Gen 2

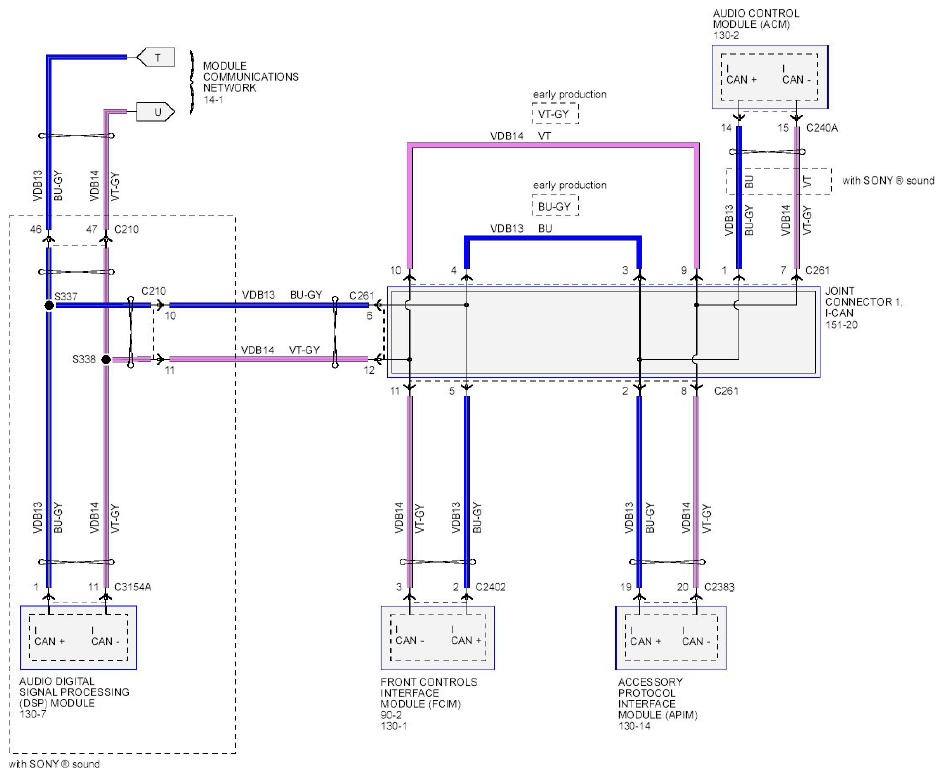

Fig 1: Module Communication Network (SYNC GEN 2) - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
