Module Communication Network
>>
Except Sync Gen 2
Except Sync Gen 2

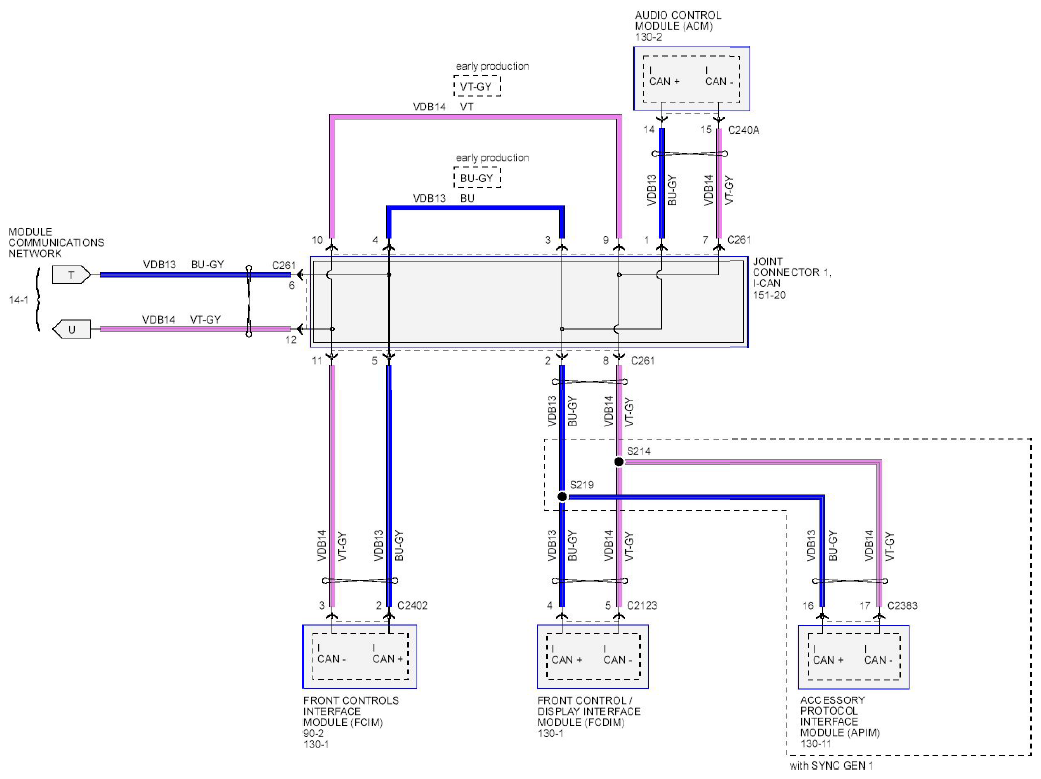

Fig 1: Module Communication Network - Wiring Diagram (Except SYNC GEN 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
